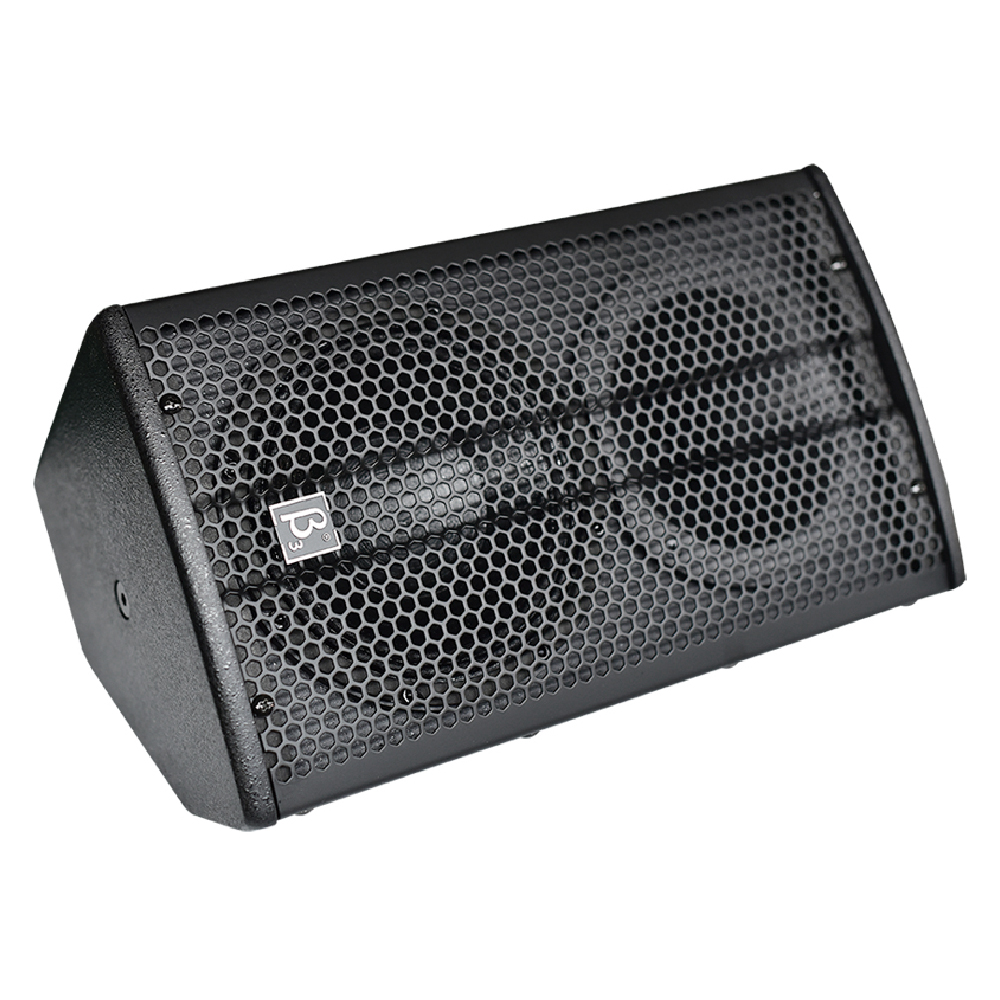

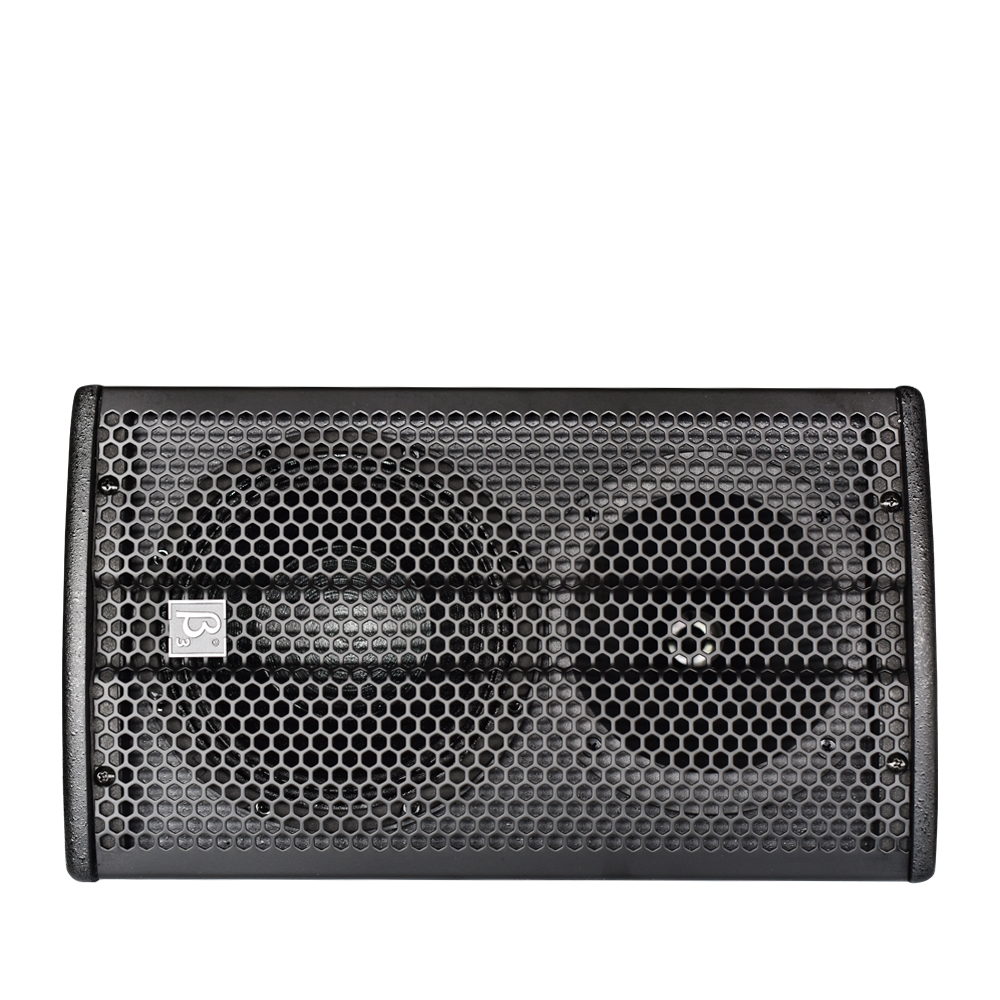

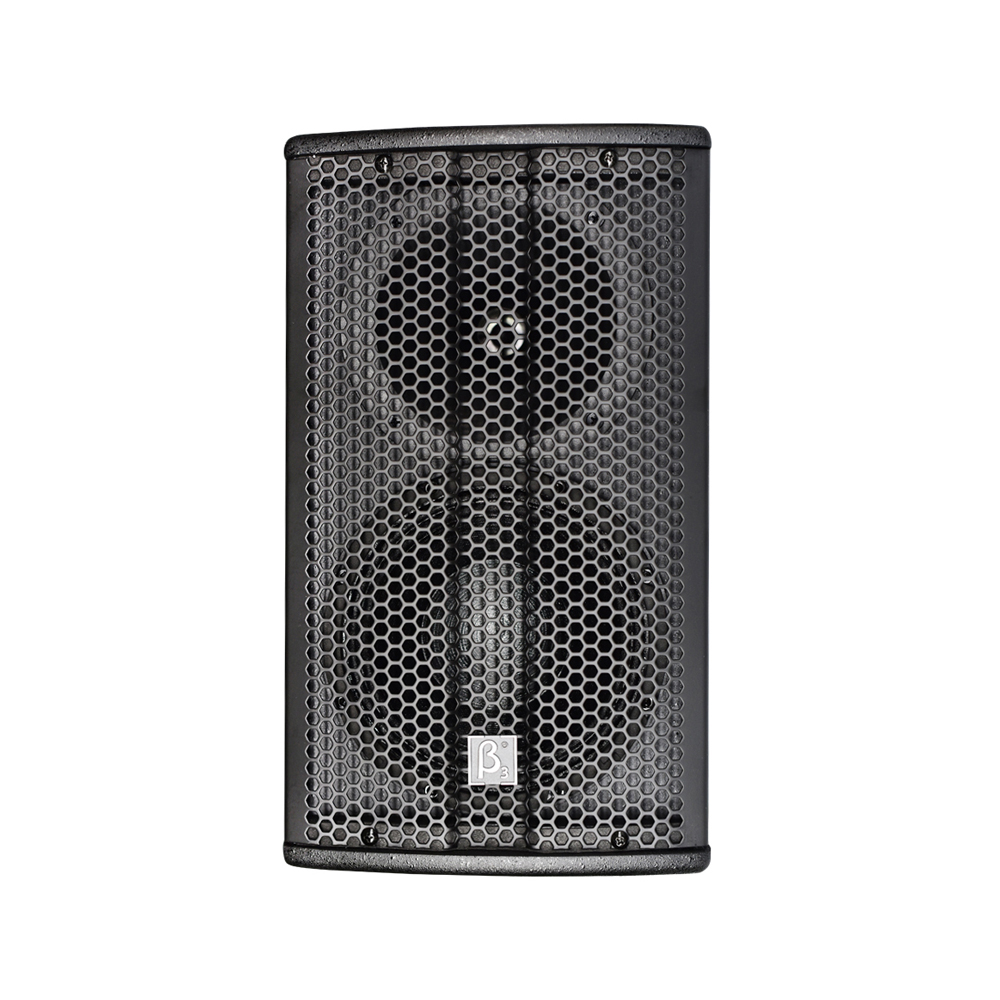

Features
- High SPL and sensitivity
- 1 x 6” high power low frequency transducer
- 1 x 1” PEI diaphragm compression driver
- Passive configuration
- 140º x 140º wide angle coverage pattern
- 1 x NL4 connector
- Computer aided design to optimise frequency and phase response
- Multi purpose cabinet design for FOH or monitor use
- Use as a main system with or without sub speaker augmentation.
- Suitable for speech and background music
- Flexible and easy-to-install configurations (wall, ceiling, under balcony)
- U bracket included
- Combine with any ΣB or ΣJ Series high power sub speaker for extended low frequency, high quality music reproduction
- Powder coated grill
- Durable Polyurethane textured base paint, white available
- 1 x NL4 connector included in packaging

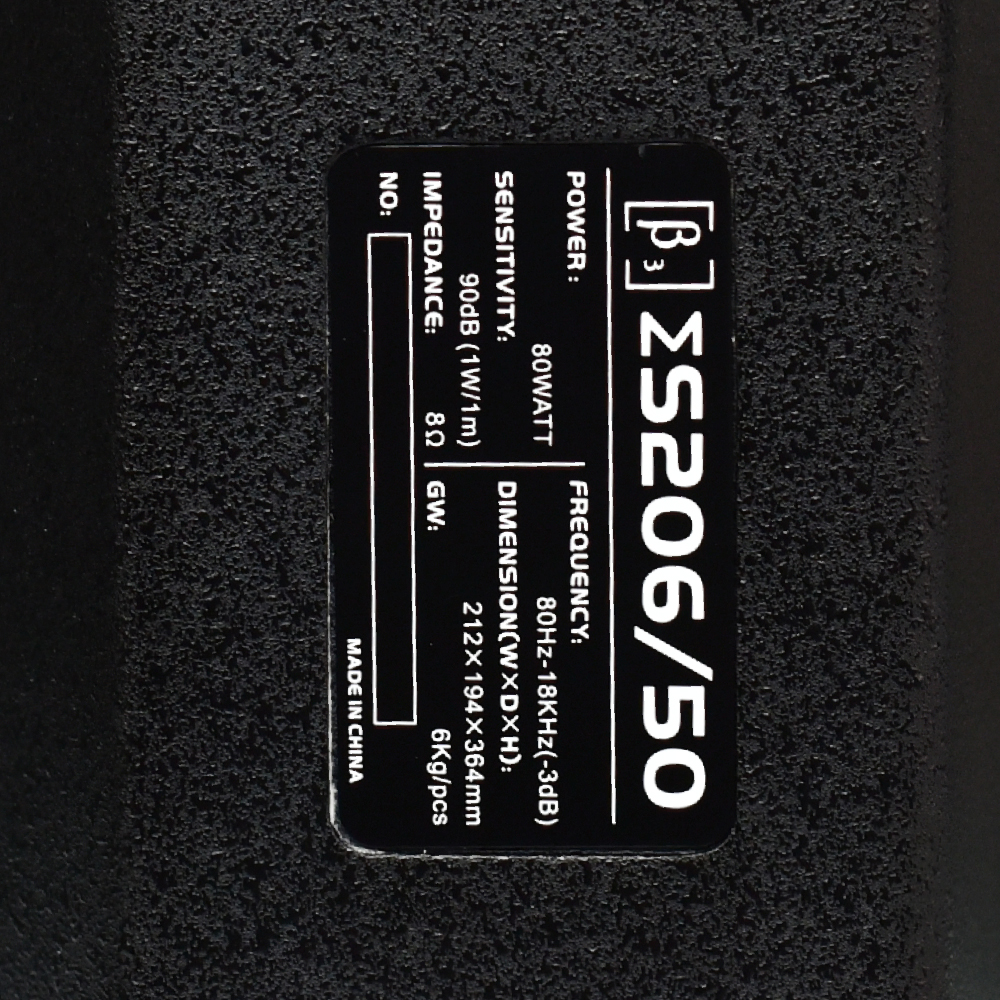

Specifications
Acoustical specifications
Frequency Response(-3db):
80Hz-18kHz
Dispersion (H x V):
140° x 140°
Transducers
Compression driver:
1 x 1" HF Compression Driver
Woofer:
1 x 6" LF
Input/Output section

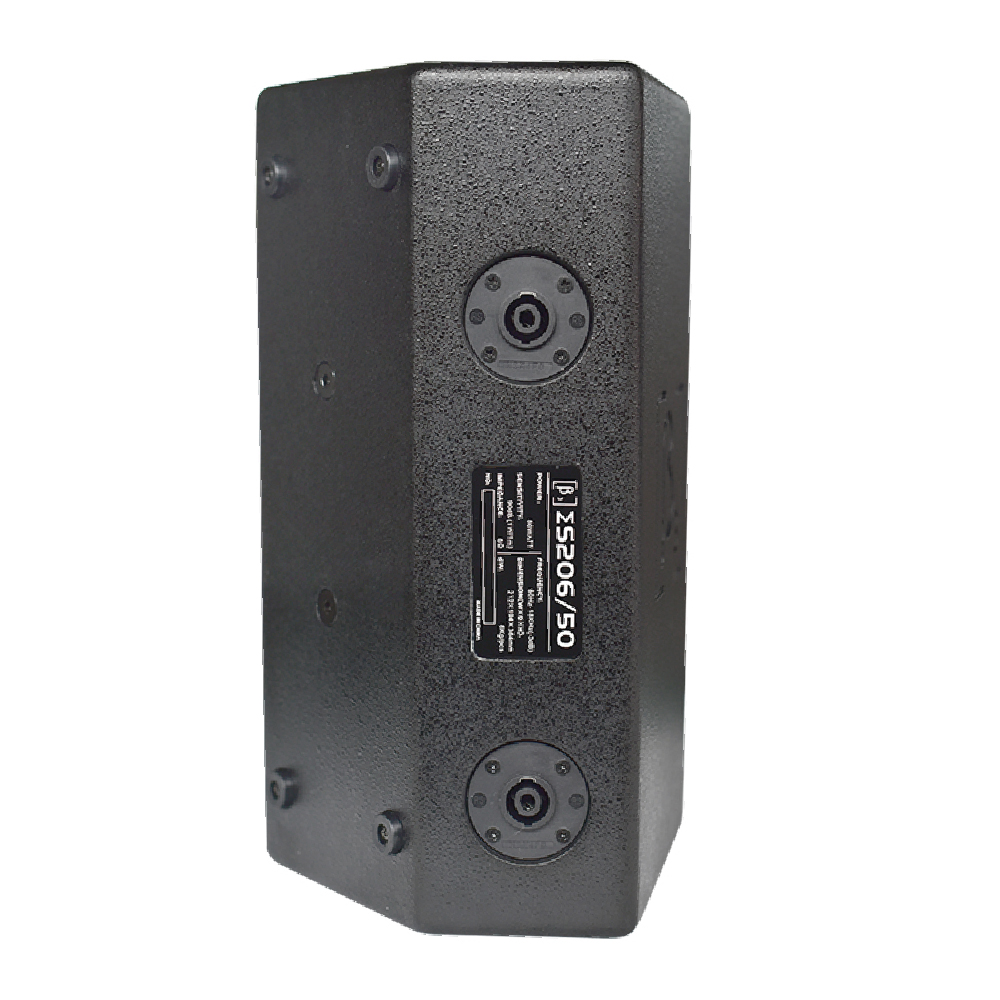

Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
90dB
Processor section
Crossover frequencies:
3.2kHz
Power section
Total Power:
80W(RMS); 160W(MUSIC); 320W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
212 x 194 x 364mm / (8.3 x 7.6 x 14.3in)
Package Dimensions (W x D x H):
541 x 293 x 465mm / (21.3 x 11.5 x 18.3in)
Weight
Net Weight:
6 kg / 13.2 lb
Gross Weight:
15 kg / 33.1 lb

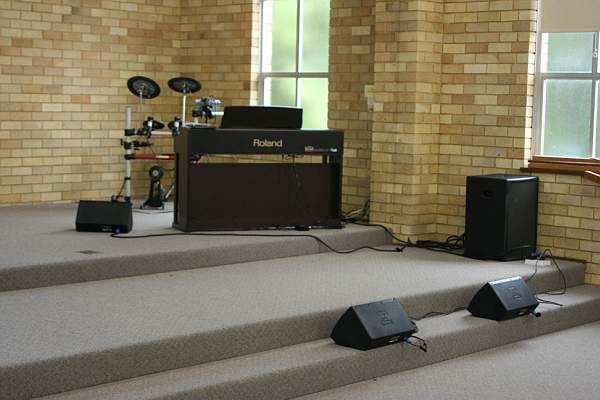

ΣS206/50 Application
ΣS206/50 Installation
ΣS206/50 Parts
ΣS206/50 Cases
ΣS206/50 Collocation
