Features
- High SPL and sensitivity

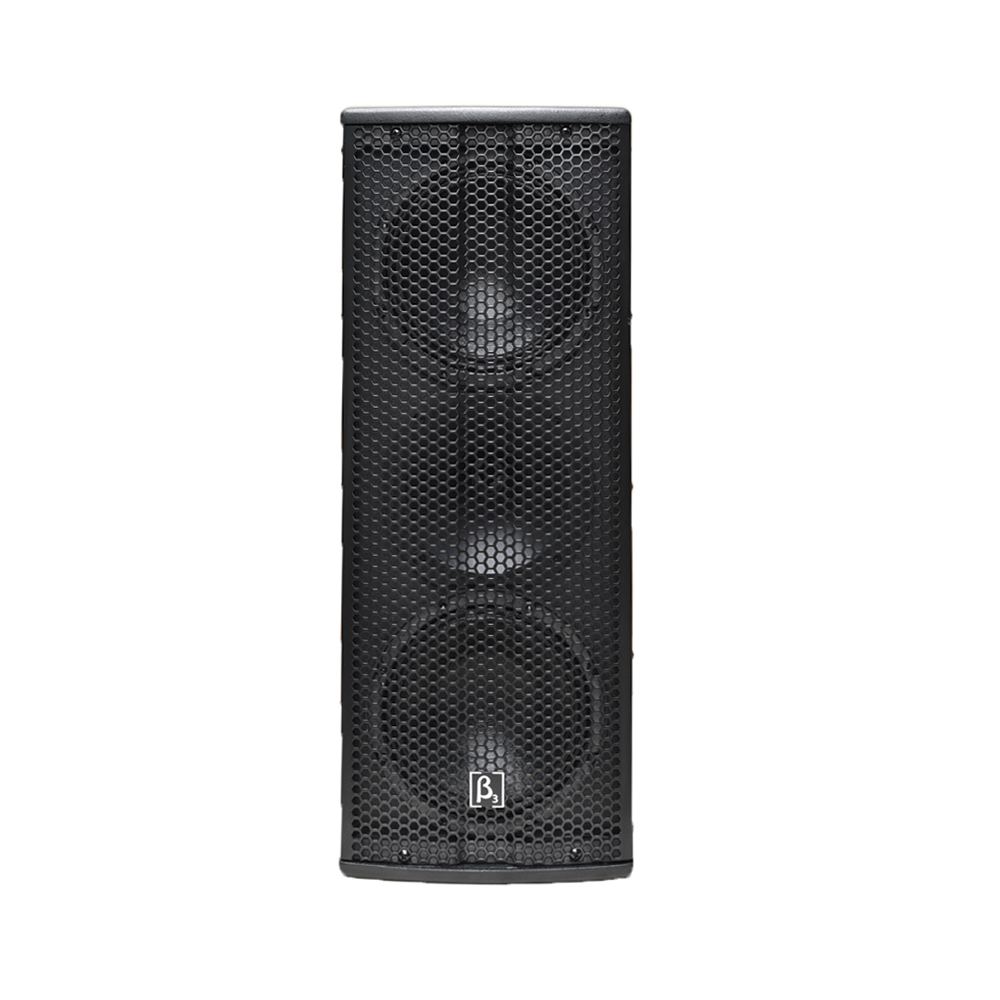

- 2 x 6” high power low frequency transducer
- 1 x 1” PEI diaphragm compression driver
- Passive configuration
- 140º x 140º wide angle coverage pattern

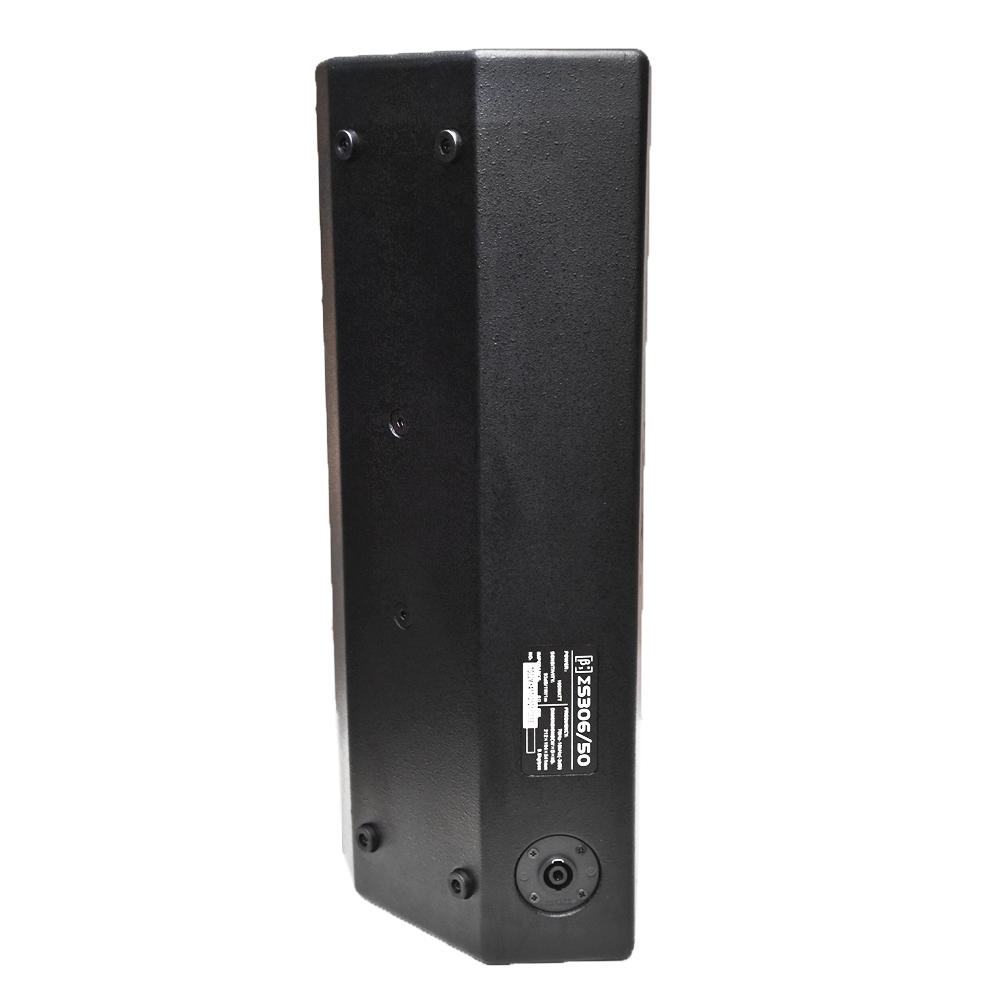

- 1 x NL4 connector
- Computer aided design to optimise frequency and phase response
- Multi purpose cabinet design for FOH or monitor use
- Use as a main system with or without sub speaker augmentation.
- Suitable for speech and background music
- Flexible and easy-to-install configurations (wall, ceiling, under balcony)
- U Bracket included
- 35mm Stand Adapter included
- Combine with any ΣB or ΣJ Series high power sub speaker for extended low frequency, high quality music reproduction
- Powder coated grill
- Durable Polyurethane textured base paint, white available
- 1 x NL4 connector included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
70Hz-18kHz
Max SPL @ 1m:
115dB/121dB(PEAK)
Dispersion (H x V):
140° x 140°
Transducers
Compression driver:
1 x 1" HF Compression Driver
Woofer:
2 x 6" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
93dB
Processor section
Crossover frequencies:
3kHz
Power section
Total Power:
160W(RMS); 320W(MUSIC); 640W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
212 x 194 x 541mm / (8.3 x 7.6 x 21.3in)
Package Dimensions (W x D x H):
631 x 541 x 303mm / (24.8 x 21.3 x 11.9in)
Weight
Net Weight:
9 kg / 19.8 lb
Gross Weight:
22.5 kg / 49.6 lb
