Features
- High SPL and sensitivity
- 1 x 10” high power low frequency transducer
- 1 x 1.7” titanium diaphragm compression driver
- Passive configuration
- (55-100)º x 50º controlled coverage pattern
- 1 x NL4 connector
- Computer aided design to optimise frequency and phase response
- Multi purpose cabinet design for FOH or monitor use
- Suitable for use as a main system with or without sub speaker augmentation
- Integral 35mm pole mount receptacle for stand or vertical installation
- 6 x mounting points for permanent installation (wall, ceiling, under balcony)
- Combine with any ΣB or ΣJ Series high power sub speaker for extended low frequency, high quality music reproduction
- Powder coated grill
- Durable Polyurethane textured base paint, white available
- 1 x NL4 connector included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
60Hz-20kHz
Max SPL @ 1m:
118dB/123dB(PEAK)
Dispersion (H x V):
55-100° x 50°
Transducers
Compression driver:
1 x 1.7" HF Compression Driver
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
95dB
Processor section
Crossover frequencies:
2.5kHz
Power section
Total Power:
200W(RMS); 400W(MUSIC); 800W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size

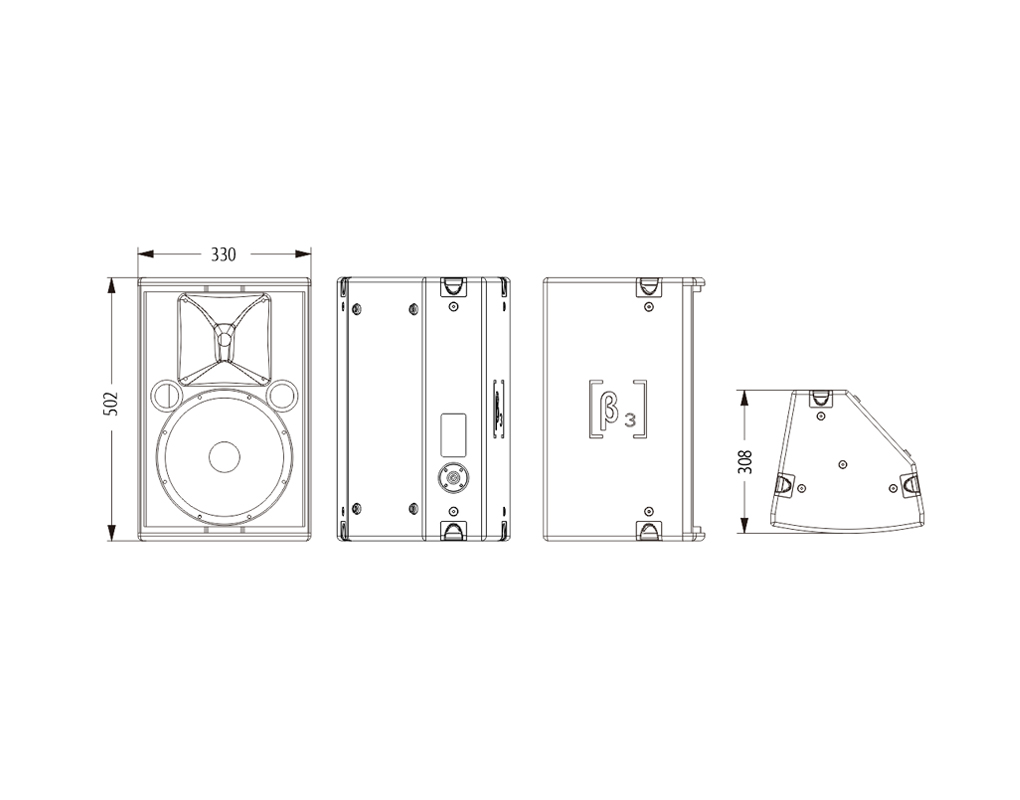

Dimension (W x D x H):
330 x 308 x 502mm / (13 x 12.1 x 19.8in)
Package Dimensions (W x D x H):
430 x 408 x 622mm / (16.9 x 16.1 x 24.5in)
Weight
Net Weight:
15 kg / 33.1 lb
Gross Weight:
18 kg / 39.7 lb
ΣS210/105 Application
ΣS210/105 Installation
ΣS210/105 Parts
ΣS210/105 Cases
ΣS210/105 Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 ΣS210/105 Datasheet | 1.0 |  | 200KB | 2024-11-22 02:47:25 |
| β3_ΣS210-105_PA_Chinese_Manual | 1 |  | 3719.35KB | 2018-07-12 02:25:39 |
| β3_ΣS210-105_PA_English_Manual | 1 | | 3592.87KB | 2018-07-12 02:25:39 |
