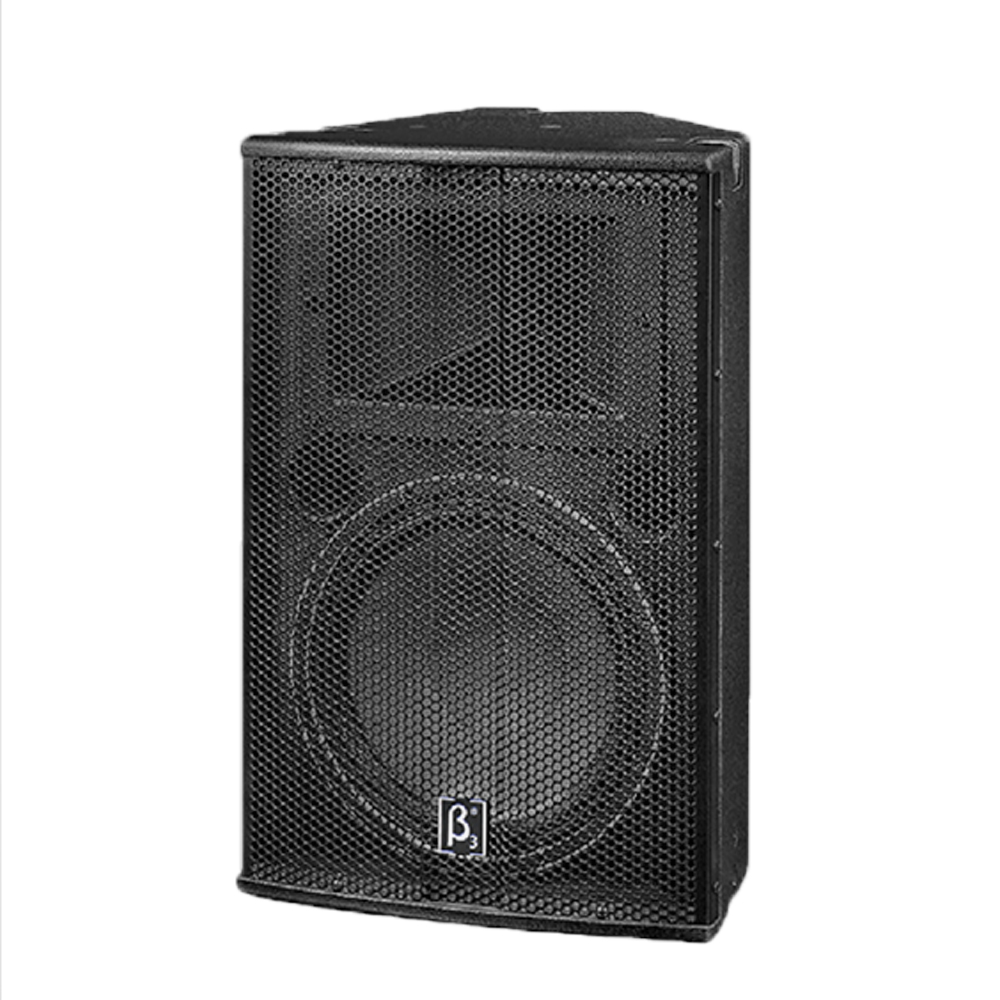

Features
- High SPL and sensitivity
- 1 x 12” high power low frequency transducer
- 1 x 3” titanium diaphragm compression driver
- Passive configuration
- 80º x 50º controlled coverage pattern

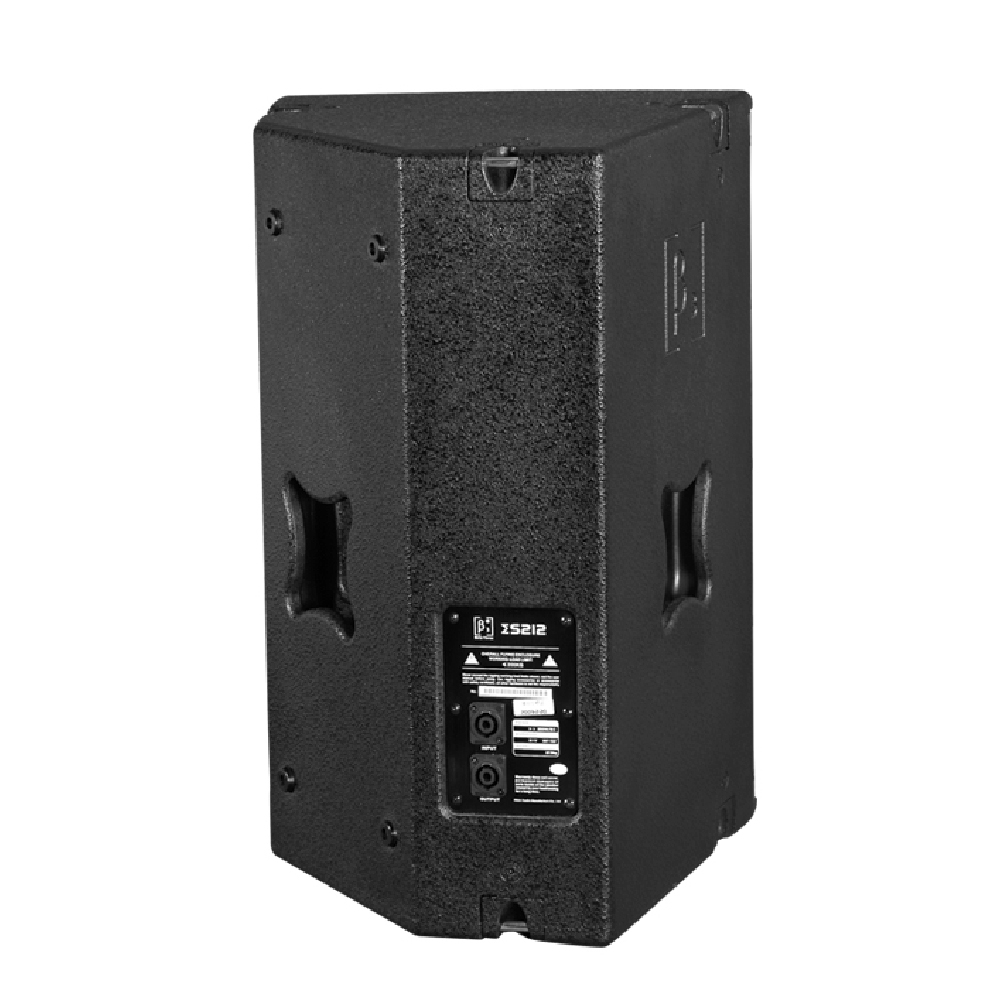

- 2 x NL4 connectors
- Computer aided design to optimise frequency and phase response
- Multi purpose cabinet design for FOH or monitor use
- Suitable for use as a main system with or without sub speaker augmentation
- Integral 35mm pole mount receptacle for stand or vertical installation
- 6 x mounting points for permanent installation (wall, ceiling, under balcony)
- Combine with any ΣB or ΣJ Series high power sub speaker for extended low frequency, high quality music reproduction
- Powder coated grill
- Durable Polyurethane textured base paint
- 1 x NL4 connector included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
60Hz-16kHz
Max SPL @ 1m:
120dB/126dB(PEAK)
Dispersion (H x V):
80° x 50°
Transducers
Compression driver:
1 x 3" HF Compression Driver
Woofer:
1 x 12" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
97dB
Processor section
Crossover frequencies:
2.5kHz
Power section
Total Power:
250W(RMS); 500W(MUSIC); 1000W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
397 x 370 x 600mm / (15.6 x 14.6 x 23.6in)
Package Dimensions (W x D x H):
505 x 480 x 720mm / (19.9 x 18.9 x 28.3in)
Weight
Net Weight:
25 kg / 55.1 lb
Gross Weight:
29 kg / 63.9 lb
