Features
- High SPL and sensitivity
- 1 x 15” high power low frequency transducer
- 1 x 3” titanium diaphragm compression driver
- Passive configuration
- 80º x 50º controlled coverage pattern
- 2 x NL4 connectors
- Computer aided design to optimise frequency and phase response
- Multi purpose cabinet design for FOH or monitor use
- Suitable for use as a main system with or without sub speaker augmentation
- Integral 35mm pole mount receptacle for stand or vertical installation
- Mounting points for permanent installation (wall, ceiling, under balcony)
- Combine with any ΣB or ΣJ Series high power sub speaker for extended low frequency, high quality music reproduction
- Powder coated grill
- Durable Polyurethane textured base paint
- 1 x NL4 connector included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-16kHz
Max SPL @ 1m:
120dB/126dB(PEAK)
Dispersion (H x V):
80° x 50°
Transducers
Compression driver:
1 x 3" HF Compression Driver
Woofer:
1 x 15" LF

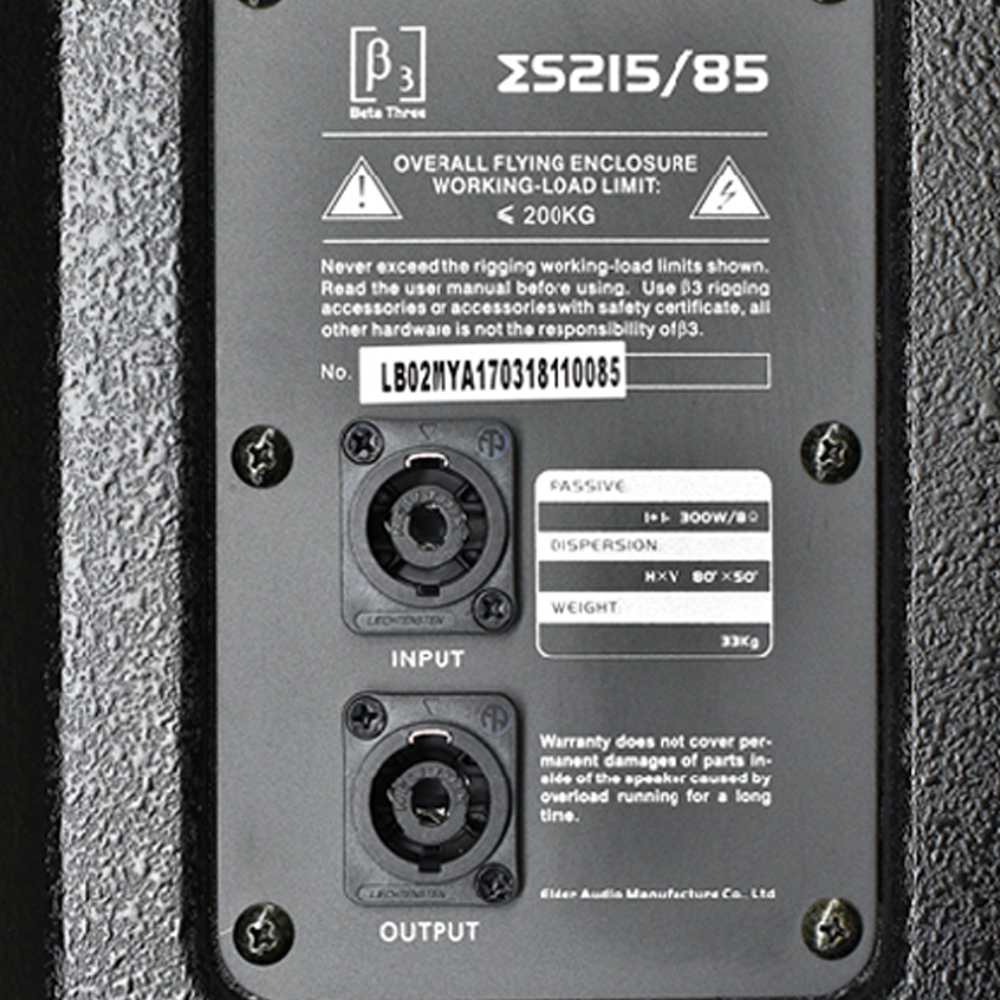

Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
97dB
Processor section
Crossover frequencies:
2.5kHz
Power section
Total Power:
250W(RMS); 500W(MUSIC); 1000W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
462 x 440 x 720mm / (18.2 x 17.3 x 28.3in)
Package Dimensions (W x D x H):
570 x 550 x 840mm / (22.4 x 21.7 x 33.1in)
Weight
Net Weight:
33 kg / 72.8 lb
Gross Weight:
37 kg / 81.6 lb
