Features
- High sensitivity and SPL
- 1 x 18” high power low frequency transducer
- Six order bandpass configuration
- Speakon input connectors
- Computer aided design to optimise frequency and phase response
- Stacking locators
- Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction
- Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinets
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
38Hz-150Hz
Max SPL @ 1m:
126dB/132dB(PEAK)
Transducers
Woofer:
1 x 18" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
100dB
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black

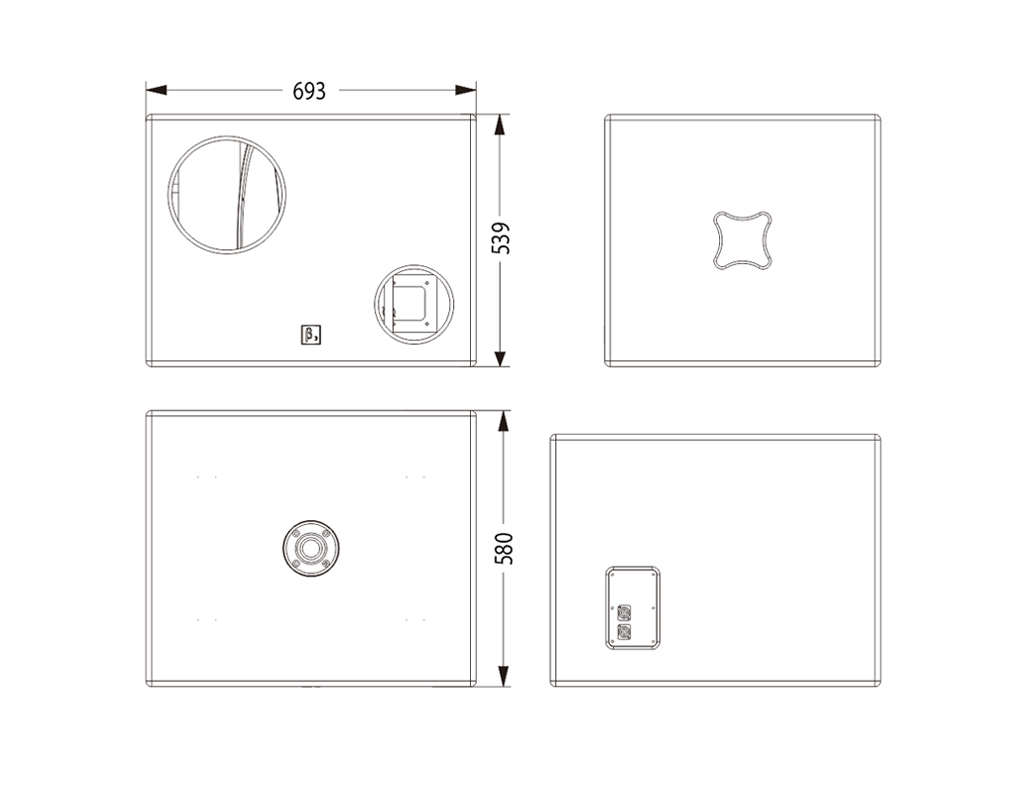

Size
Dimension (W x D x H):
693 x 580 x 539mm / (27.3 x 22.8 x 21.2in)
Package Dimensions (W x D x H):
803 x 690 x 650mm / (31.6 x 27.2 x 25.6in)
Weight
Net Weight:
37 kg / 81.6 lb
Gross Weight:
44.4 kg / 97.9 lb
ΣB118D Application
ΣB118D Installation
ΣB118D Parts
ΣB118D Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 ΣB118D Datasheet | 1.0 |  | 200KB | 2024-11-23 00:57:58 |
| β3_ΣB118D_PA_English_Manual | 1 | | 1404KB | 2022-05-09 16:33:52 |
