Features
- High output SPL and sensitivity
- Speakon input connectors
- Integrated pole mount adapter at bottom
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Suitable for use as a main system with or without sub speaker augmentation
- Powder coated protective grill
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
90Hz-18KHz
Max SPL @ 1m:
106dB/112dB(PEAK)
Dispersion (H x V):
80° x 70°
Transducers
Compression driver:
1 x 25mm HF
Woofer:
1 x 8" LF
Input/Output section

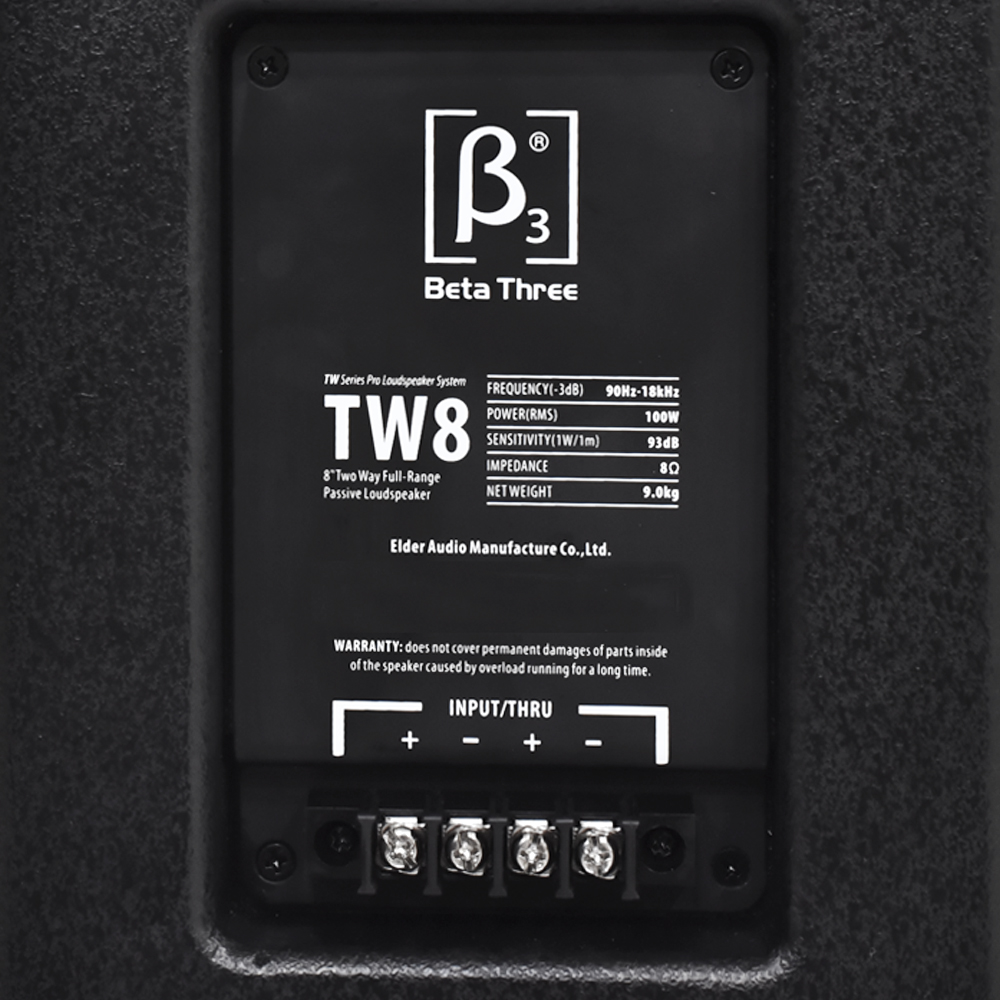

Input Connectors:
4-push terminal
Sensitivity (1W @ 1m):
93dB
Power section
Total Power:
100W(RMS); 200W(MUSIC); 400W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
225 x 270 x 408mm / (8.9 x 10.6 x 16.1in)
Package Dimensions (W x D x H):
535 x 345 x 495mm / (21.1 x 13.6 x 19.5in)
Weight
Net Weight:
9 kg / 19.8 lb
Gross Weight:
21 kg / 46.3 lb
TW8 Application
TW8 Installation
TW8 Parts
TW8 Cases
TW8 Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 TW8 Datasheet | 1.0 |  | 200KB | 2024-12-22 08:49:58 |
| β3_TW8_PA_Chinese_Manual | 1 |  | 1028.26KB | 2018-07-12 02:25:39 |
| β3_TW8_PA_English_Manual | 1 | | 749.97KB | 2018-07-12 02:25:39 |
