Features
- High output SPL and sensitivity
- Built-in high power amplifier module with DSP
- Master volume control
- XLR input and output connectors
- Smart sound quality adjustment
- Integrated pole mount adaptor at bottom
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Suitable for use as a main system with or without sub speaker augmentation
- Powder coated protective grill
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-20kHz
Max SPL @ 1m:
115dB/121dB(PEAK)
Dispersion (H x V):
110° x 90°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 12" LF

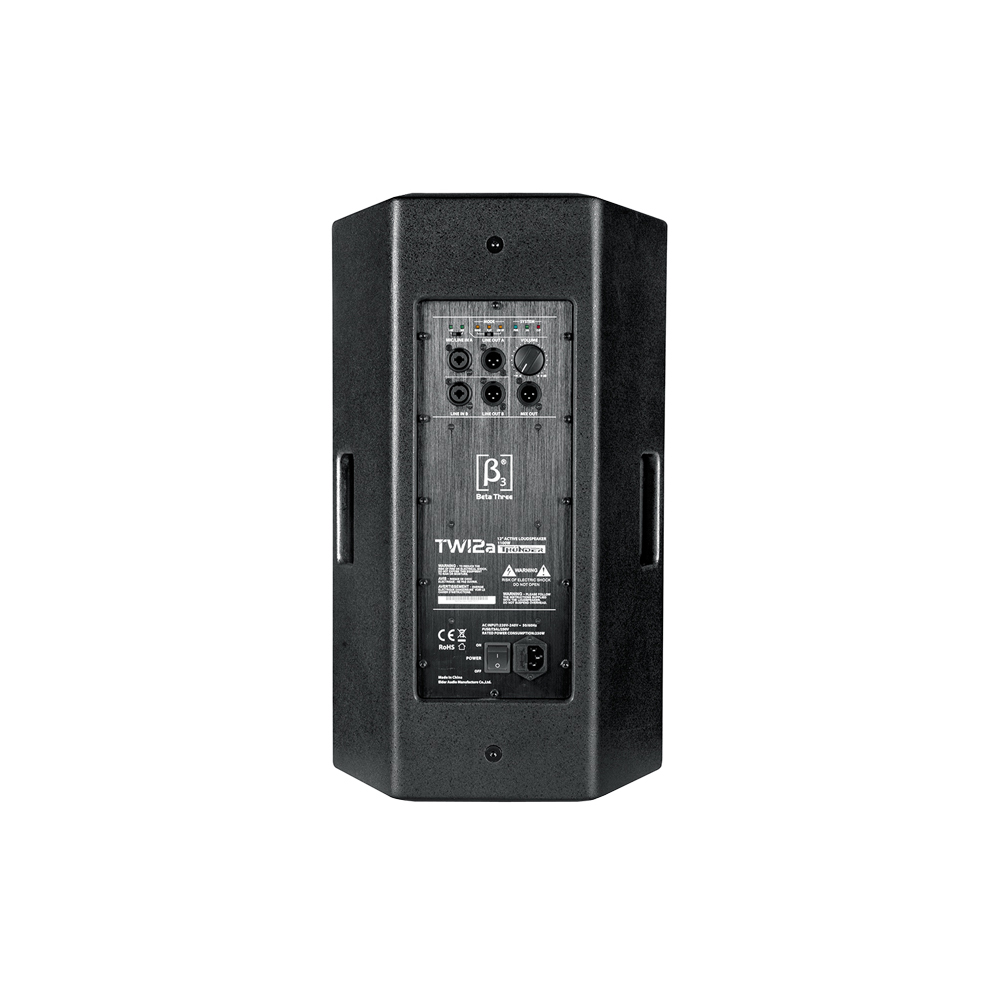

Input/Output section
Input signal:
95kΩ/LINE, 2kΩ/MIC
Input Connectors:
Input: 2 x Combo(one with Mic/Line switch),Output: 3 x XLR
Power section
Total Power:
1100W(RMS);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
Plywood
Hardware:
Three-point lifting
Handles:
2 × Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
375 x 375 x 600mm / (14.8 x 14.8 x 23.6in)
Package Dimensions (W x D x H):
465 x 465 x 720mm / (18.3 x 18.3 x 28.3in)
Weight
Net Weight:
21 kg / 46.3 lb
Gross Weight:
23.7 kg / 52.2 lb
