Features
- High output SPL and sensitivity
- Speakon input connectors
- Integrated pole mount adaptor at bottom
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Suitable for use as a main system with or without sub speaker augmentation
- Powder coated protective grill
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-18kHz
Max SPL @ 1m:
128dB/134dB(PEAK)
Dispersion (H x V):
50° x 55°
Transducers
Compression driver:
1 x 3" Compression Driver
Woofer:
2 x 15" LF
Input/Output section
Sensitivity (1W @ 1m):
101dB
Processor section
Crossover frequencies:
1.6kHz
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
Plywood
Hardware:
Three-point lifting
Handles:
6 × Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

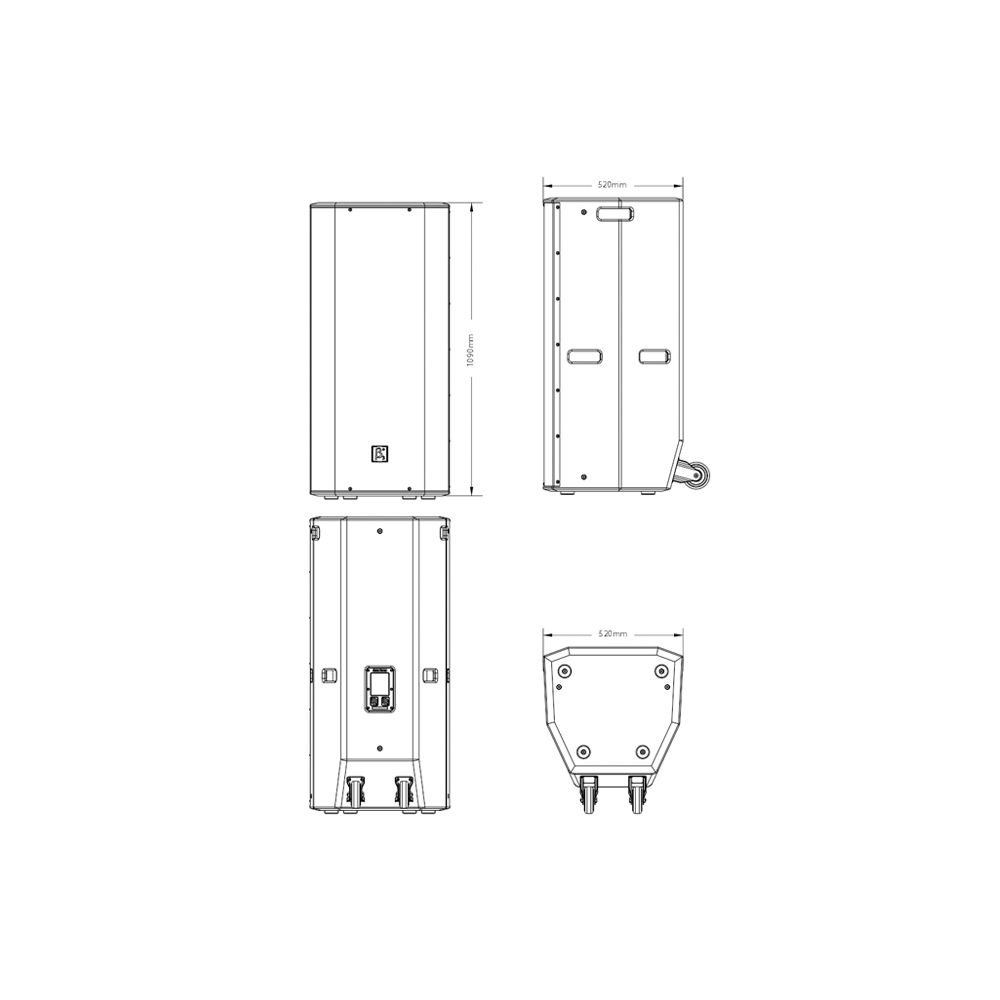

Dimension (W x D x H):
520 x 520 x 1090mm / (20.5 x 20.5 x 42.9in)
Package Dimensions (W x D x H):
650 x 650 x 1240mm / (25.6 x 25.6 x 48.8in)
Weight
Net Weight:
52 kg / 114.6 lb
Gross Weight:
59.5 kg / 131.2 lb
