Features
- High output SPL and sensitivity
- Built-in high power amplifier module with DSP
- Master volume control
- XLR input and output connectors
- Smart sound quality adjustment
- Integrated pole mount adaptor at bottom
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Suitable for use as a main system with or without sub speaker augmentation
- Powder coated protective grill
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-17kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
50° x 55°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 15" LF
Input/Output section
Input signal:
95kΩ/LINE, 2kΩ/MIC
Input Connectors:
Input: 2 x Combo(one with Mic/Line switch),Output: 3 x XLR
Power section
Total Power:
1100W(RMS);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
Plywood
Hardware:
12 × M10 hanging point
Handles:
2 × Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

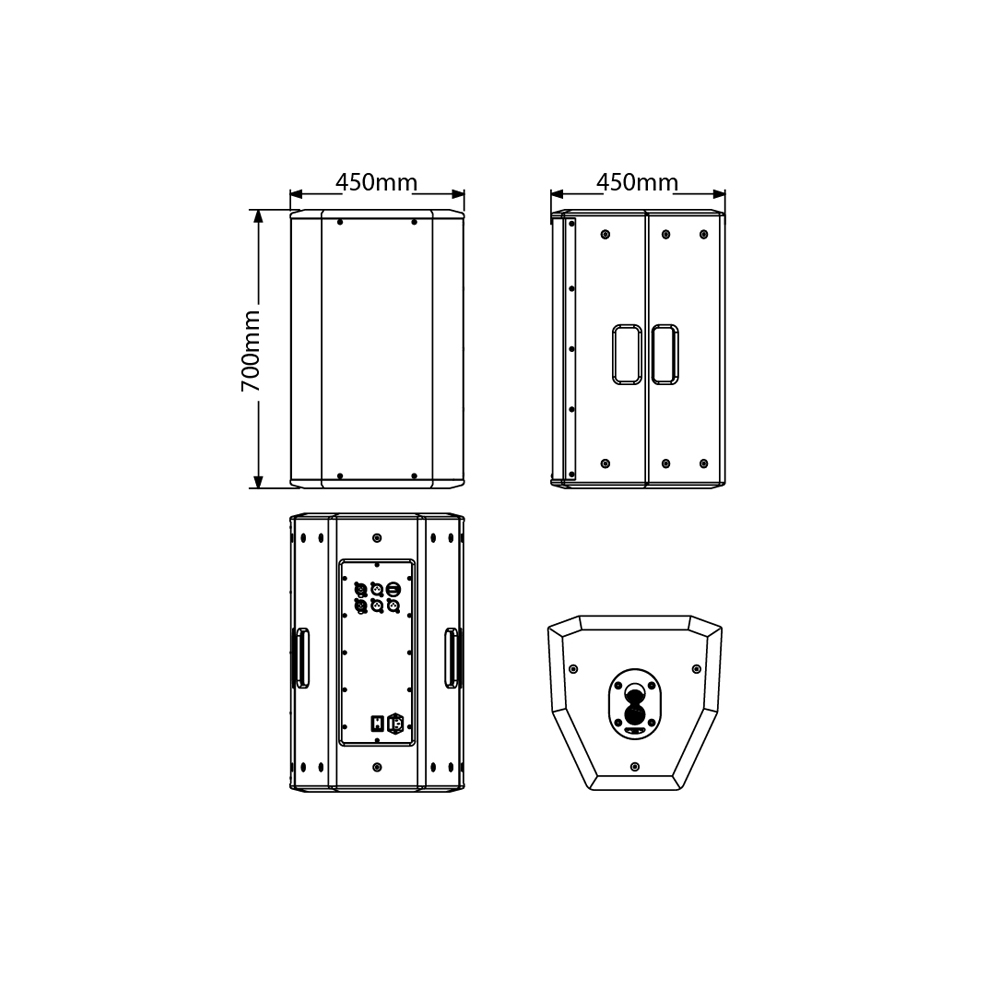

Dimension (W x D x H):
450 x 450 x 700mm / (17.7 x 17.7 x 27.6in)
Package Dimensions (W x D x H):
560 x 560 x 820mm / (22 x 22 x 32.3in)
Weight
Net Weight:
28.7 kg / 63.3 lb
Gross Weight:
32.3 kg / 71.2 lb
