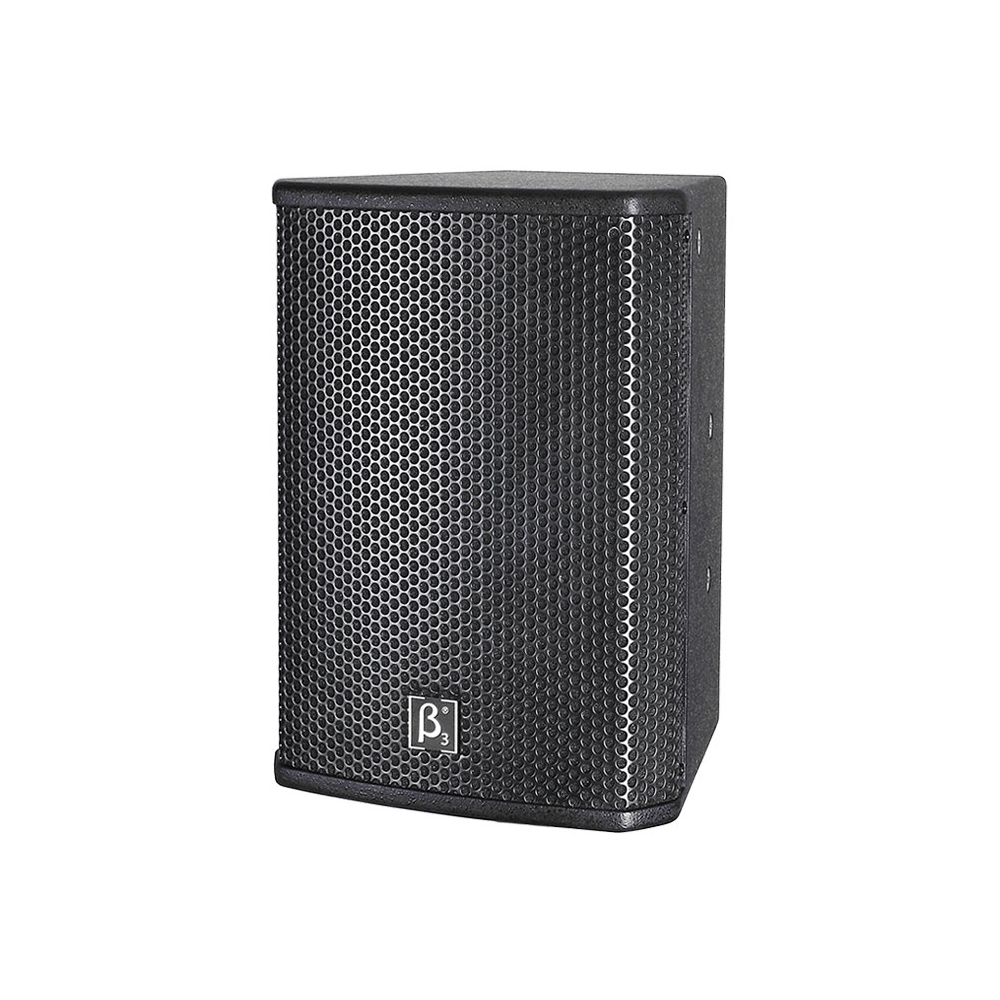

Features
- High output SPL and sensitivity
- 1 x 8” high power Neodymium transducer with 34mm voice coil
- 1 x 1.4” titanium diaphragm compression driver with Neodymium coaxial design
- 90º x 90º controlled coverage pattern

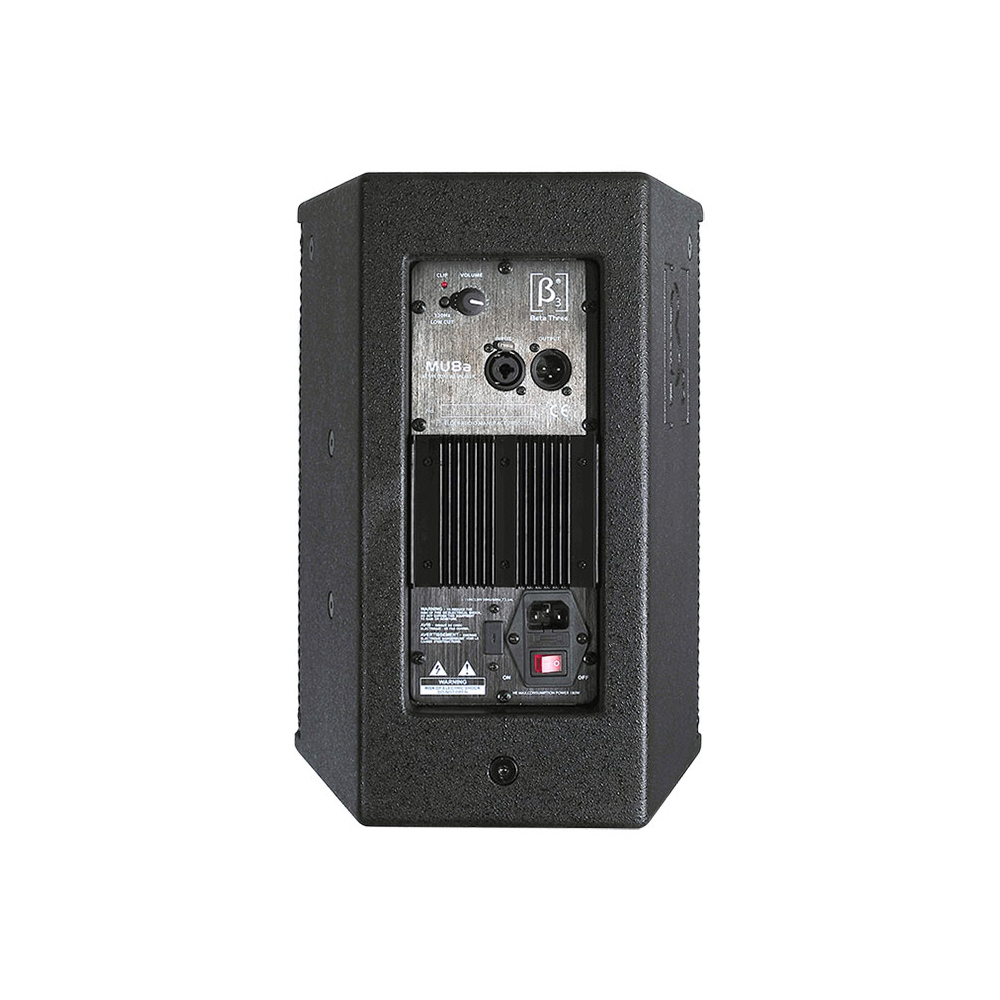

- Built-in power amplifier module
- Master volume control
- XLR input and output connectors
- 120Hz low cut switch
- Computer aided design to optimise frequency and phase response
- Cabinet design for FOH use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Arrays with MU12Ba active high power sub speaker for extended low frequency, high quality music reproduction
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
80Hz-20kHz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
90° x 90°
Transducers
Compression driver:
1 x 1.4" HF
Woofer:
1 x 8" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
6.35/XLR for input, XLR for output
Power section
Total Power:
180W(RMS); 360W(MUSIC); 720W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
15mm Birch Plywood
Hardware:
Support flange, 5 x mounting points
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

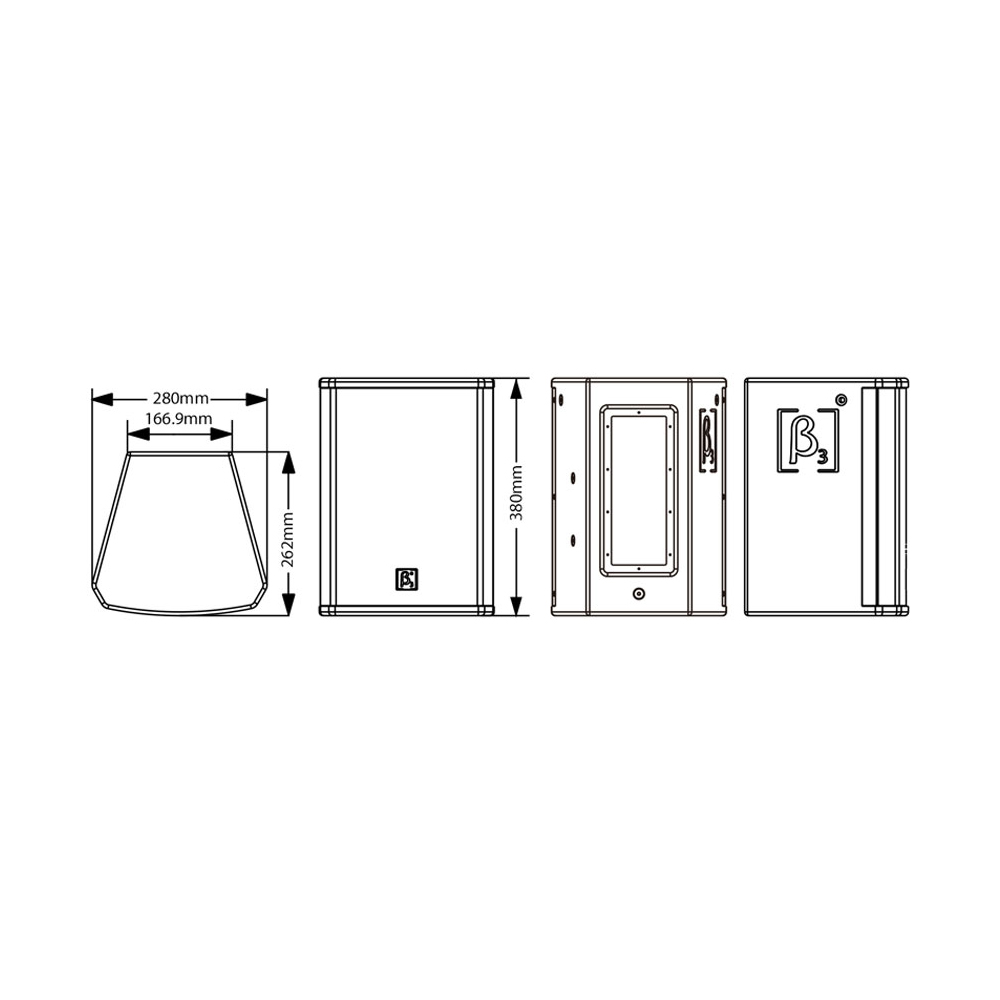

Dimension (W x D x H):
280 x 262 x 380mm / (11 x 10.3 x 15in)
Package Dimensions (W x D x H):
340 x 320 x 460mm / (13.4 x 12.6 x 18.1in)
Weight
Net Weight:
9.5 kg / 20.9 lb
Gross Weight:
10.5 kg / 23.1 lb
