Features
- High output SPL and sensitivity
- 1 x 10” high power transducer with 75mmm voice coil
- 1 x 1.7” compression driver
- 80º x 50º coverage pattern
- 2 x NL4 connectors
- Computer aided design to optimise frequency and phase response
- Cabinet design for FOH use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Adjustable flying track on the top and bottom of the speaker
- Arrays with MU12B, MU12Ba, MU18B and MU18Ba high power sub speakers for extended low frequency, high quality music reproduction
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
- 1 x NL4 connector included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
70Hz-20KHz
Max SPL @ 1m:
114dB/120dB(PEAK)
Dispersion (H x V):
80° x 50°
Transducers
Compression driver:
1 x 1.7" HF Compression Driver
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
94dB
Processor section
Crossover frequencies:
1.8kHz
Power section
Total Power:
200W(RMS); 400W(MUSIC); 800W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
15mm Birch Plywood
Handles:
1 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black

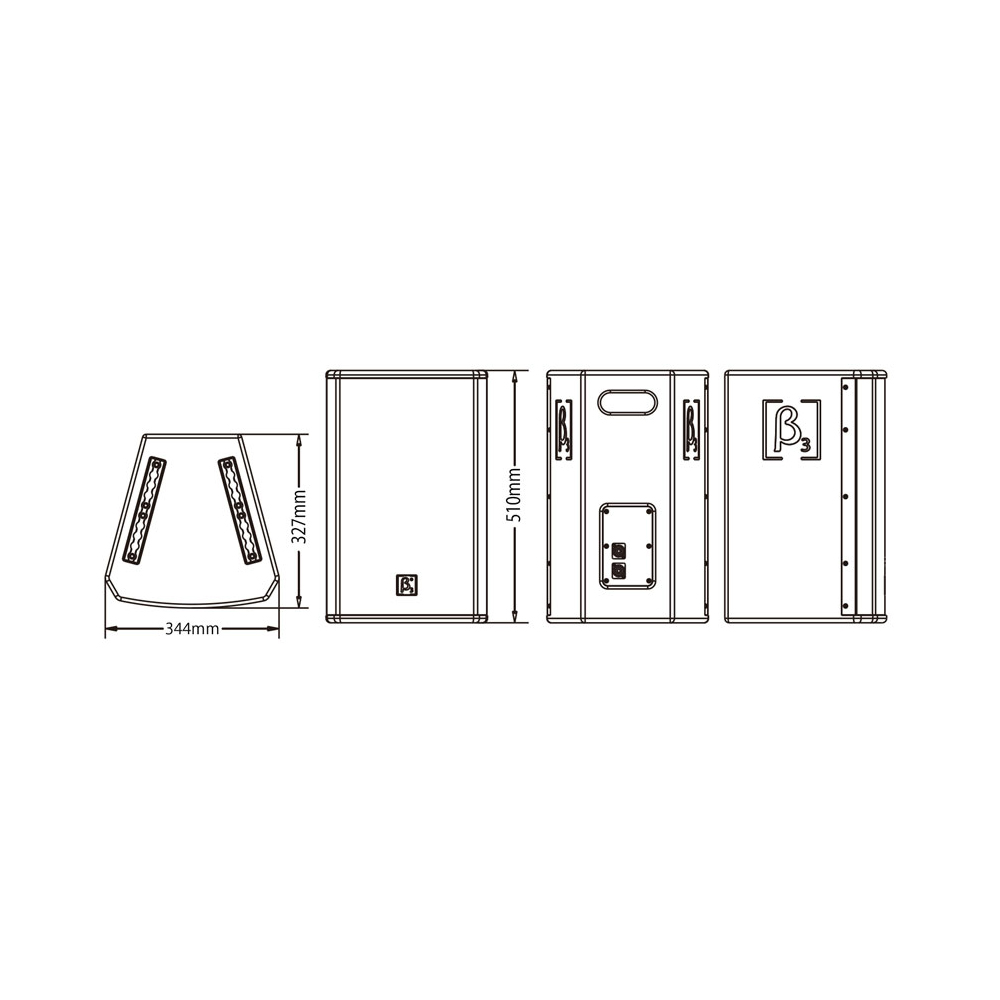

Size
Dimension (W x D x H):
344 x 327 x 510mm / (13.5 x 12.9 x 20.1in)
Package Dimensions (W x D x H):
410 x 410 x 610mm / (16.1 x 16.1 x 24in)
Weight
Net Weight:
16 kg / 35.3 lb
Gross Weight:
18 kg / 39.7 lb
