Features
- High output SPL and sensitivity
- 1 x 8” high power transducer with 75mmm voice coil
- 1 x 1.4” compression driver
- 90º x 90º coverage pattern
- 2 x NL4 connectors
- Computer aided design to optimise frequency and phase response
- Cabinet design for FOH use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Adjustable flying track on the top and bottom of the speaker
- Arrays with MU12B, MU12Ba, MU18B and MU18Ba high power sub speakers for extended low frequency, high quality music reproduction
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
- 1 x NL4 connector included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
80Hz-20kHz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
90° x 90°
Transducers
Compression driver:
1 x 1.4" HF Compression Driver
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
92dB
Processor section
Crossover frequencies:
3kHz
Power section
Total Power:
140W(RMS); 280W(MUSIC); 560W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
15mm Birch Plywood
Hardware:
Support flange, 5 x mounting points
Grille:
Polyurethane-based painting. Steel grille is coated by dots to provide strong ultra-Weatherability
Color:
Black
Size

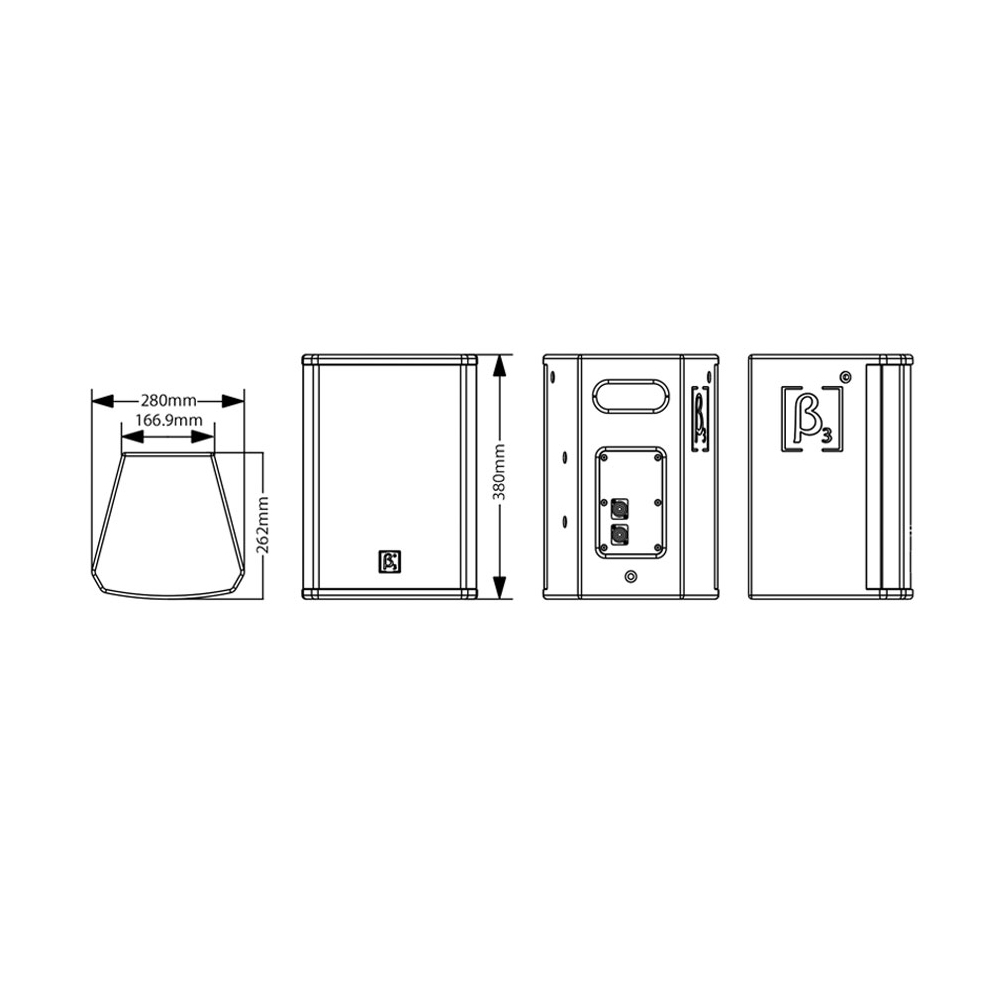

Dimension (W x D x H):
280 x 262 x 380mm / (11 x 10.3 x 15in)
Package Dimensions (W x D x H):
340 x 320 x 460mm / (13.4 x 12.6 x 18.1in)
Weight
Net Weight:
8 kg / 17.6 lb
Gross Weight:
9 kg / 19.8 lb
