Features
- High output SPL and sensitivity
- 1 x 15” high power transducer with 75mm voice coil
- 1 x 3” compression driver
- 90º x 40º coverage pattern
- Built-in power amplifier module
- Master volume control
- XLR input and output connectors
- 120Hz low cut switch
- Computer aided design to optimise frequency and phase response
- Cabinet design for FOH use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Adjustable flying track on the top and bottom of the speaker
- Arrays with MU12B, MU12Ba, MU18B and MU18Ba high power sub speakers for xtended low frequency, high quality music reproduction
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-16KHz
Max SPL @ 1m:
121dB/127dB(PEAK)
Dispersion (H x V):
60° x 40°
Transducers
Compression driver:
1 x 3" HF Compression Driver
Woofer:
1 x 15" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
6.35/XLR for input, XLR for output
Power section
Total Power:
460W(RMS); 920W(MUSIC); 1840W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
15mm Birch Plywood
Hardware:
Standard flying hardware
Handles:
2 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

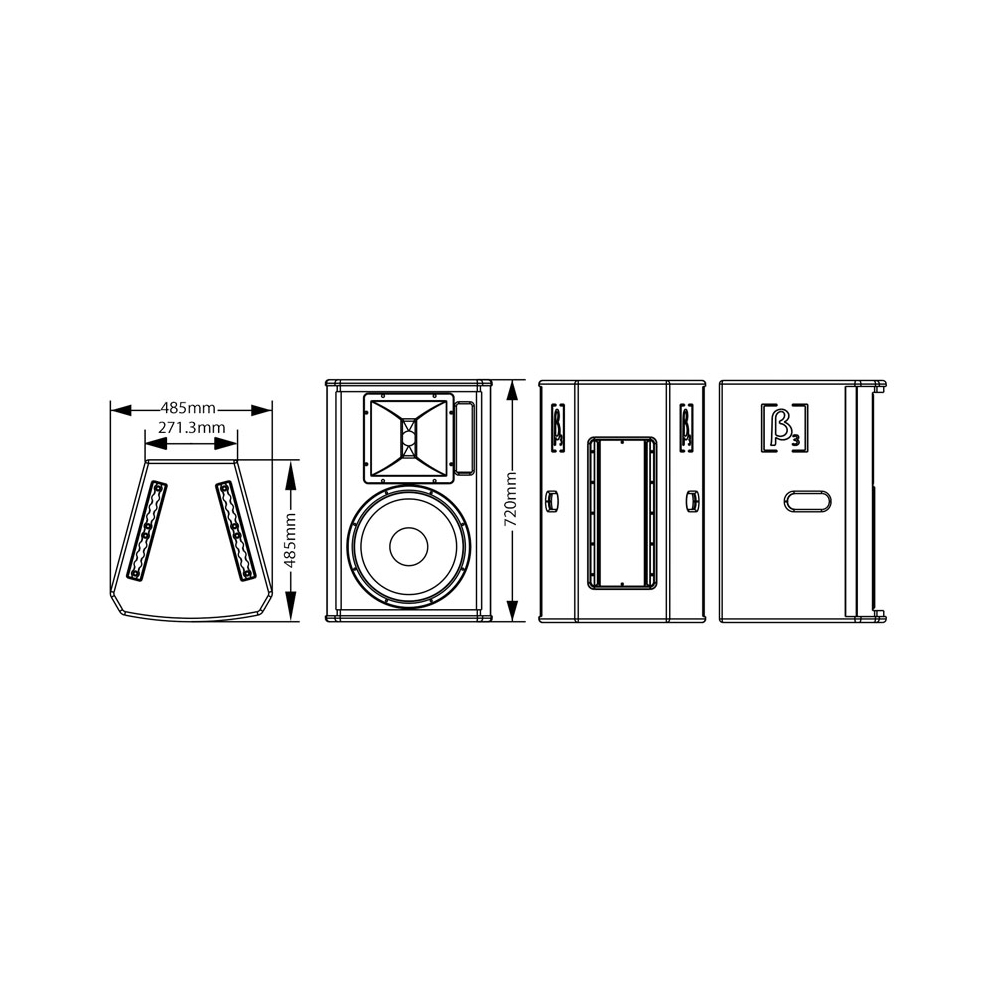

Dimension (W x D x H):
485 x 485 x 720mm / (19.1 x 19.1 x 28.3in)
Package Dimensions (W x D x H):
595 x 595 x 840mm / (23.4 x 23.4 x 33.1in)
Weight
Net Weight:
32.5 kg / 71.7 lb
Gross Weight:
37.5 kg / 82.7 lb
