Features
- High output SPL and sensitivity
- 2 x15” high power Neodymium transducers with 75mm voice coil
- 1 x 3” compression driver
- 90º x 40º coverage pattern
- 2 x NL4 connectors
- Computer aided design to optimise frequency and phase response
- Cabinet design for FOH use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling)
- Adjustable flying track on the top and bottom of the speaker
- Arrays with MU18B and MU18Ba high power sub speakers for extended low frequency, high quality music reproduction
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
- 1 x NL4 connector included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-16kHz
Max SPL @ 1m:
126dB/132dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
1 x 3" HF Compression Driver
Woofer:
2 x 15" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
98dB
Processor section
Crossover frequencies:
1.8kHz
Power section
Total Power:
600W(RMS); 1200W(MUSIC); 2400W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
18mm birch plywood
Handles:
4 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

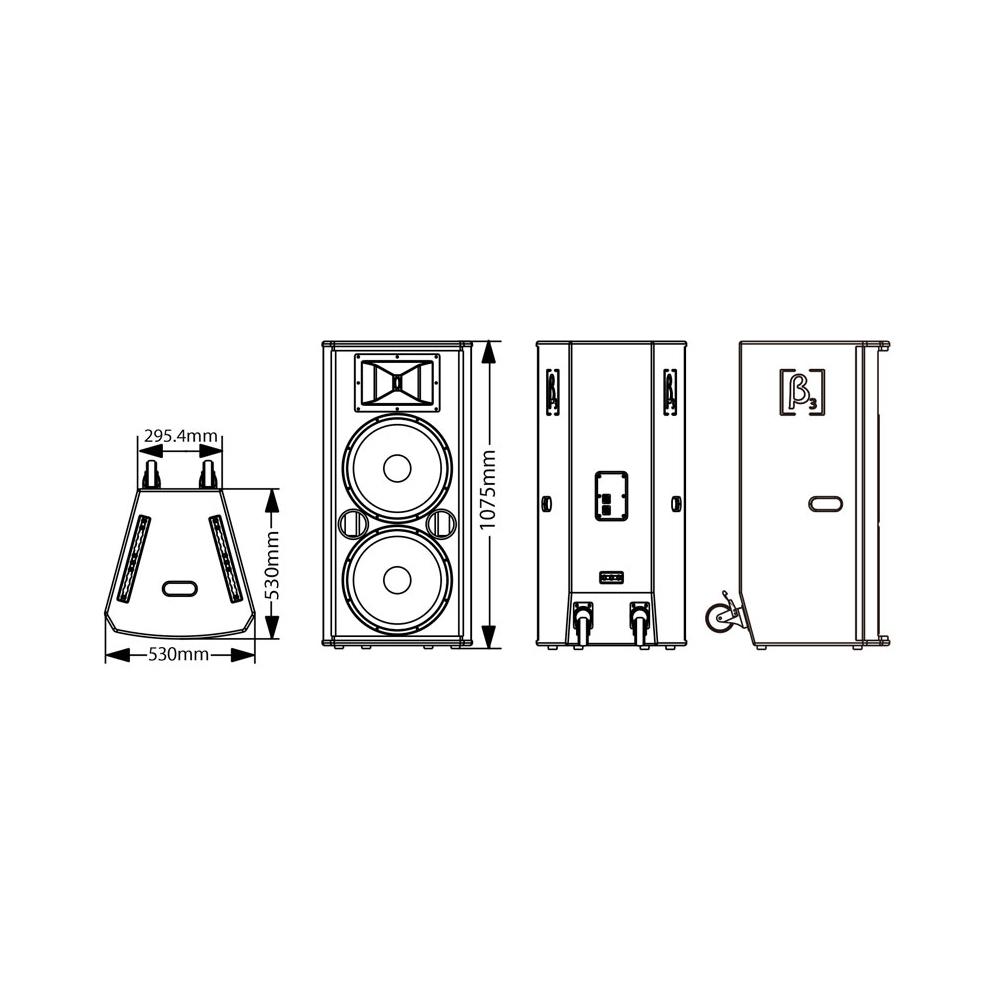

Dimension (W x D x H):
530 x 530 x 1075mm / (20.9 x 20.9 x 42.3in)
Package Dimensions (W x D x H):
660 x 660 x 1195mm / (26 x 26 x 47in)
Weight
Net Weight:
48 kg / 105.8 lb
Gross Weight:
56.5 kg / 124.6 lb
