Features
- High output SPL and sensitivity
- 1 x 12” high power transducer with 75mmm voice coil
- 1 x 3” compression driver
- 90º x 40º coverage pattern
- 2 x NL4 connectors
- Computer aided design to optimise frequency and phase response
- Cabinet design for FOH use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Adjustable flying track on the top and bottom of the speaker
- Arrays with MU12B, MU12Ba, MU18B and MU18Ba high power sub speakers for extended low frequency, high quality music reproduction
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
- 1 x NL4 connector included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
40Hz-300Hz
Max SPL @ 1m:
117dB/123dB(PEAK)
Transducers
Woofer:
1 x 12" Woofer
Input/Output section
Input Connectors:
2 x NL4 (one input, one output)
Sensitivity (1W @ 1m):
92dB
Power section
Total Power:
300W(RMS); 600W(MUSIC); 1200W(PEAK);
Nominal Impedance (Ohm):
4Ω
Physical specifications
Cabinet/Case Material:
15mm birch plywood
Handles:
2 x Wooden handles
Grille:
Polyurethane-based painting. Steel grille is coated by dots to provide strong ultra-Weatherability
Color:
Black
Size

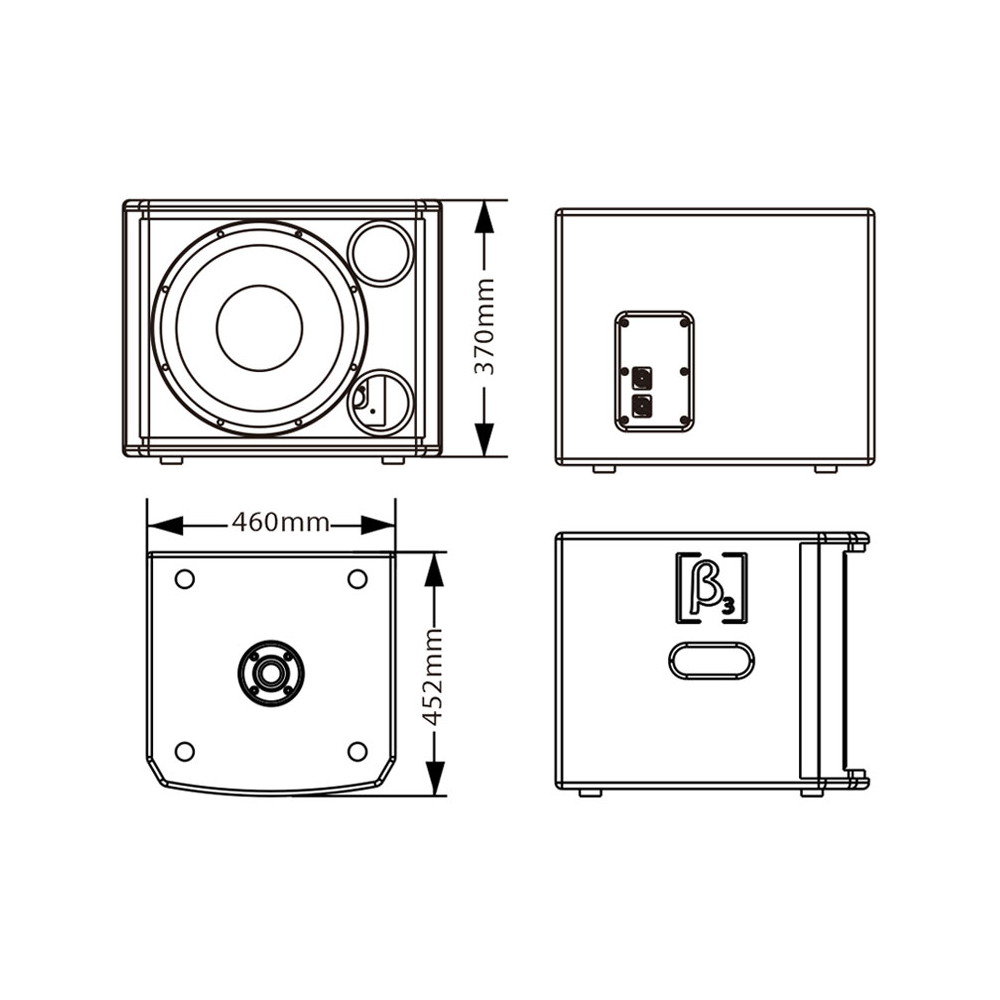

Dimension (W x D x H):
460 x 452 x 370mm / (18.1 x 17.8 x 14.6in)
Package Dimensions (W x D x H):
550 x 550 x 470mm / (21.7 x 21.7 x 18.5in)
Weight
Net Weight:
17 kg / 37.5 lb
Gross Weight:
19 kg / 41.9 lb
