Features
- High output SPL and sensitivity
- 1 x 12” high power low frequency driver
- 350w power amplifier built in
- Volume control
- High cut control on output
- Limiter switch
- Computer aided design to optimise frequency and phase response
- Suitable for use as a main subwoofer
- Portable system or permanent installation (floor only)
- Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction
- Integrated 35mm pole receptacle for mounting full range or mid/high speaker cabinets
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
40Hz-250Hz
Max SPL @ 1m:
118dB/124dB(PEAK)
Transducers
Woofer:
1 x 12" Neodymium woofer
Input/Output section
Input signal:
Balanced 20kΩ
Input Connectors:
1 x Combo 6.35/XLR Input, 1 x XLR Output
Power section
Total Power:
450W(RMS); 900W(MUSIC); 1800W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
15mm birch plywood
Handles:
2 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

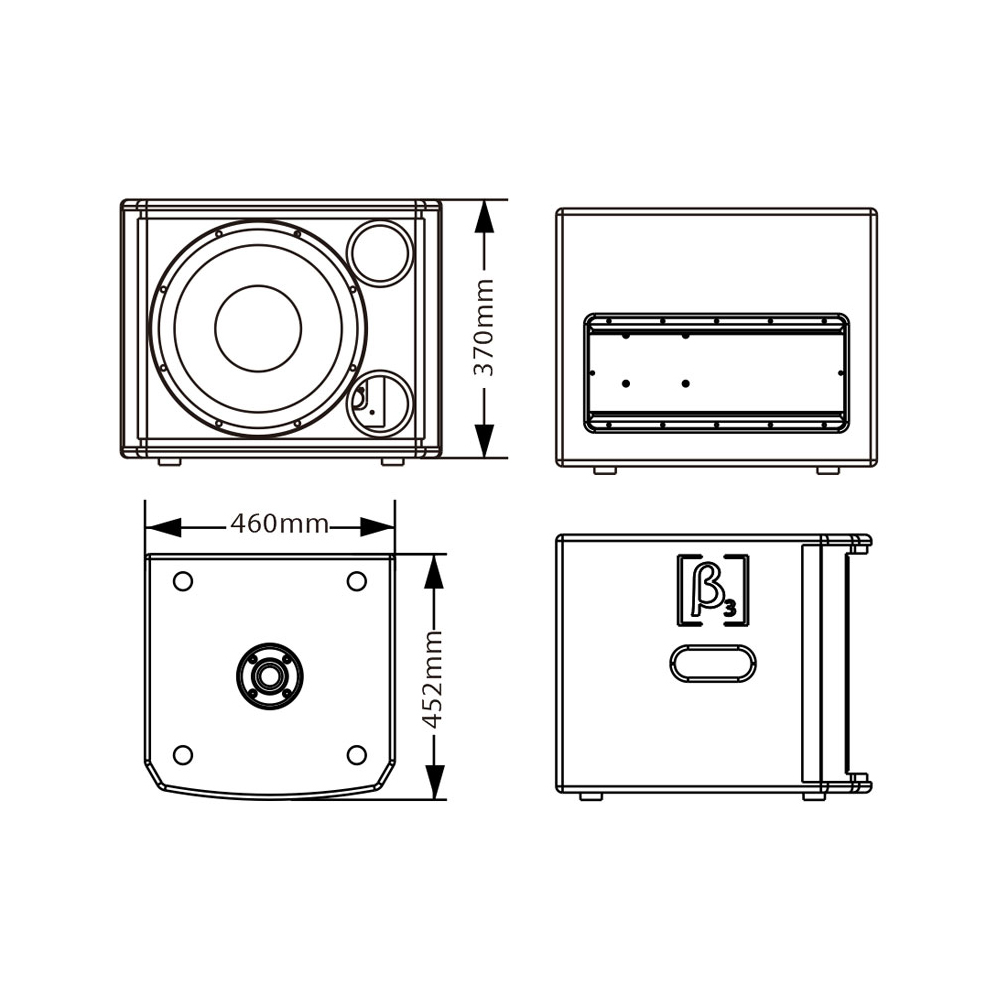

Dimension (W x D x H):
460 x 452 x 370mm / (18.1 x 17.8 x 14.6in)
Package Dimensions (W x D x H):
550 x 550 x 470mm / (21.7 x 21.7 x 18.5in)
Weight
Net Weight:
22.5 kg / 49.6 lb
Gross Weight:
24.5 kg / 54 lb
MU12Ba Application
MU12Ba Installation
MU12Ba Parts
MU12Ba Cases
MU12Ba Collocation
Videos
Downloads
| Filename | Version | Language | Size | Updated |
 β3 MU12Ba Datasheet | 1.0 |  | 200KB | 2024-12-21 14:11:08 |
| β3_MU12Ba_PA_Chinese_Manual | 1 |  | 1081.06KB | 2018-07-12 02:25:39 |
| β3_MU12Ba_PA_English_Manual | 1 | | 865.44KB | 2018-07-12 02:25:39 |
