Features
- High output SPL and sensitivity
- 1 x 18” high power low frequency transducer with 100mm voice coil
- 2 x NL4 connectors
- Sensitivity 97dB, max SPL 124dB
- Passive configuration
- RMS 500W, peak 2000W
- Computer aided design to optimise frequency and phase response
- Cabinet designed for FOH use
- Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction
- Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
- 1 x NL4 conenctor included in packaging
Specifications
Acoustical specifications
Frequency Response(-3db):
40Hz-300Hz
Max SPL @ 1m:
124dB/130dB(PEAK)
Transducers
Woofer:
1 x 18" Woofer
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
97dB
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Cabinet/Case Material:
18mm birch plywood
Hardware:
Fixed supporting base
Handles:
4 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

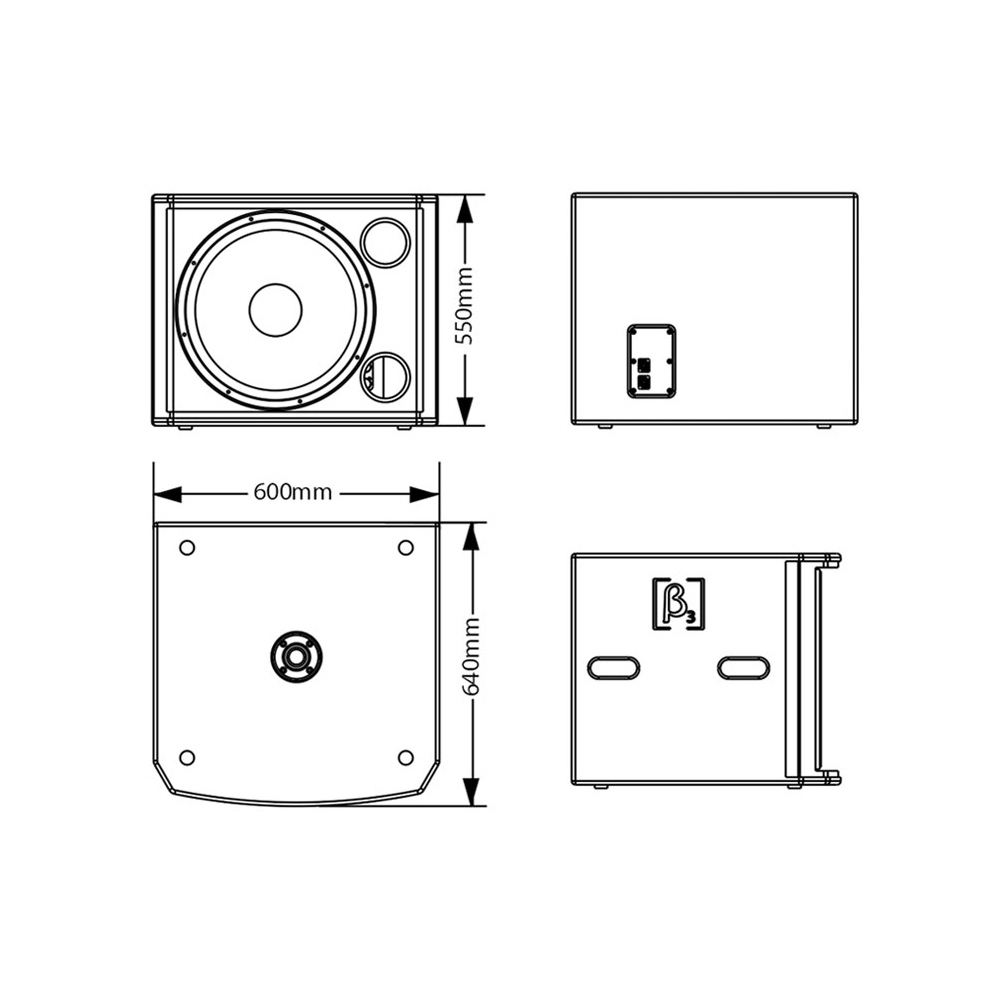

Dimension (W x D x H):
600 x 640 x 550mm / (23.6 x 25.2 x 21.7in)
Package Dimensions (W x D x H):
750 x 710 x 670mm / (29.5 x 28 x 26.4in)
Weight
Net Weight:
38 kg / 83.8 lb
Gross Weight:
44 kg / 97 lb
