Features
- High output SPL and sensitivity
- 1 x 18” high power low frequency transducer with 100mm voice coil
- Sensitivity 97dB, max SPL 124dB
- RMS 500W, peak 2000W
- Built-in power amplifier module
- Master volume control
- XLR input and output connectors
- Built in variable crossover 80Hz-250Hz high cut
- Phase switch
- Computer aided design to optimise frequency and phase response
- Cabinet designed for FOH use
- Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction
- Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet
- Powder coated grill with foam backing
- Durable Polyurethane textured base paint
Specifications
Acoustical specifications
Frequency Response(-3db):
45Hz-250Hz
Max SPL @ 1m:
124dB/130dB(PEAK)
Transducers
Woofer:
1 x 18" Woofer
Input/Output section
Input signal:
Balanced 20kΩ
Input Connectors:
1 x Combo 6.35/XLR Input, 1 x XLR Output
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Cabinet/Case Material:
18mm birch plywood
Hardware:
Fixed supporting base
Handles:
4 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size

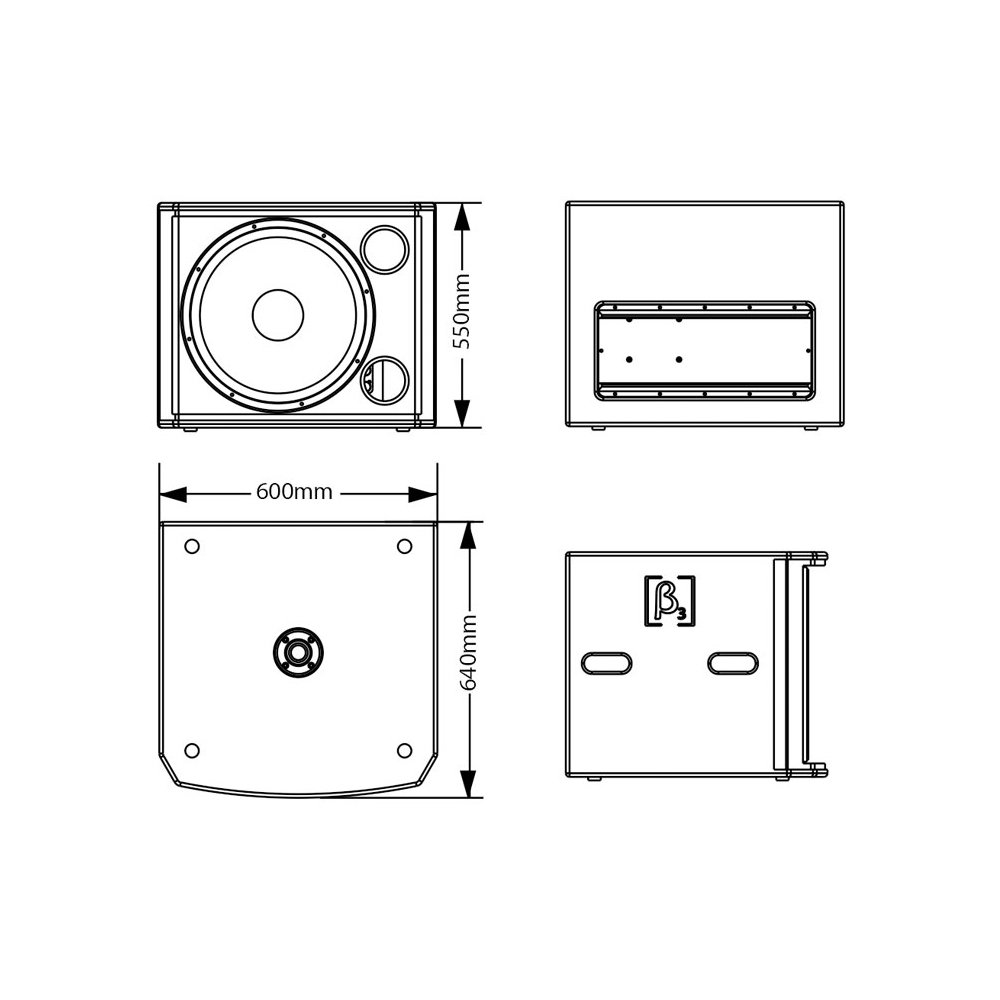

Dimension (W x D x H):
600 x 640 x 550mm / (23.6 x 25.2 x 21.7in)
Package Dimensions (W x D x H):
740 x 700 x 650mm / (29.1 x 27.6 x 25.6in)
Weight
Net Weight:
45 kg / 99.2 lb
Gross Weight:
51 kg / 112.4 lb
