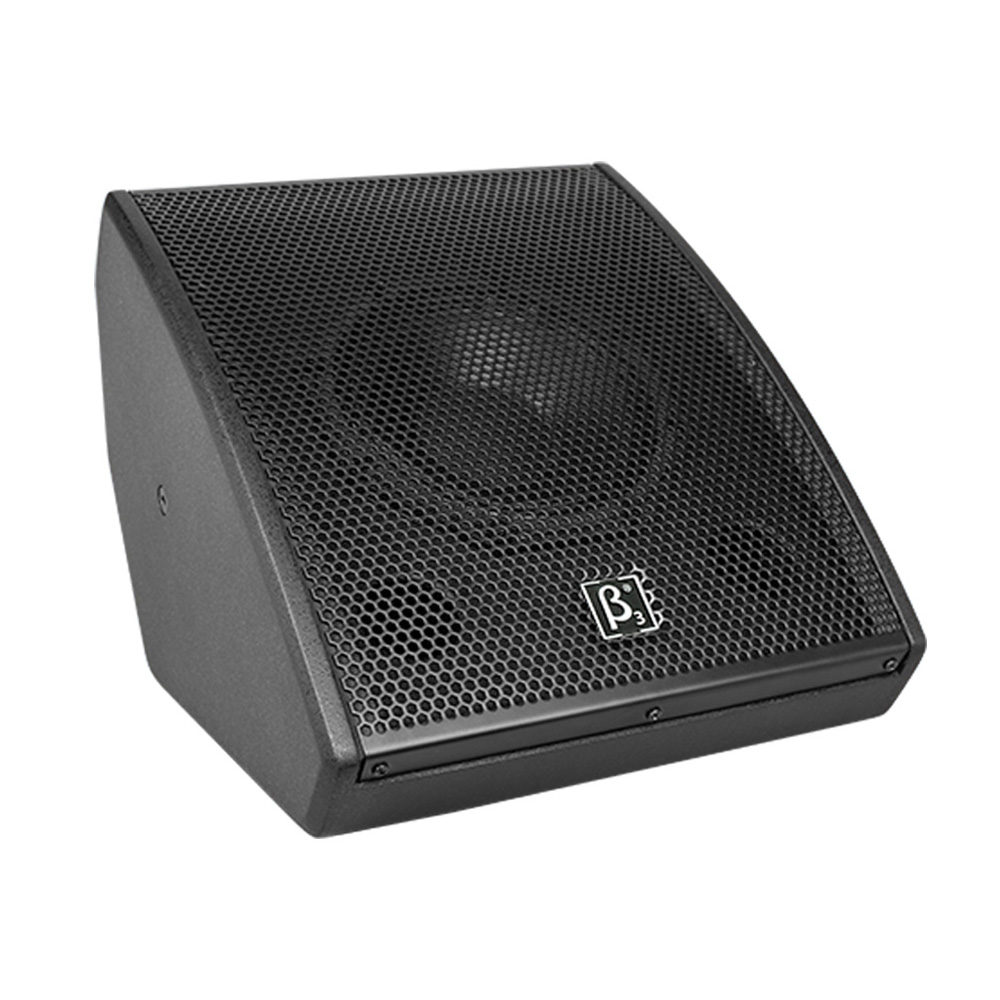

Features
- Two transducers two way full range speaker with coaxial horn, computerized stimulation design.
- New generation Class D amplifier, durable and reliable.
- Performance enhanced with built-in DSP.
- HF horn is mounted on the LF axis.
- Used for full range sound reinforcement and can be used as ground monitor speaker.
- Apply to monitor, conference system and small scale performance.
- Flexible installation according to actual application.
Specifications
Acoustical specifications
Frequency Response(-3db):
80Hz-20kHz
Max SPL @ 1m:
123dB/129dB(PEAK)
Transducers
Compression driver:
1 x 44mm Compression Driver
Woofer:
1 x 10" Woofer
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR for input, XLR for output
Power section
Total Power:
100W(RMS); 200W(MUSIC); 400W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz
Physical specifications
Cabinet/Case Material:
Plywood,wedge shaped

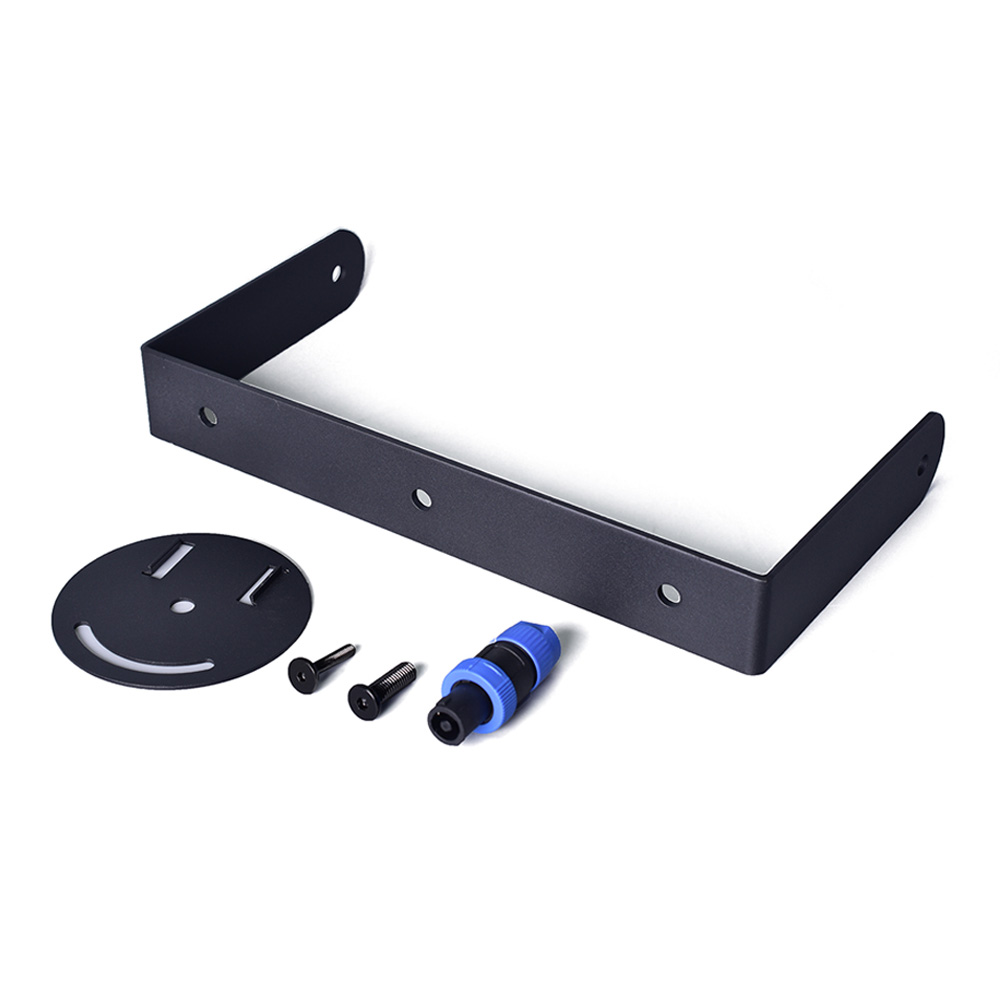

Hardware:
2 x M10 Mounting points
Handles:
1 x Wooden handles

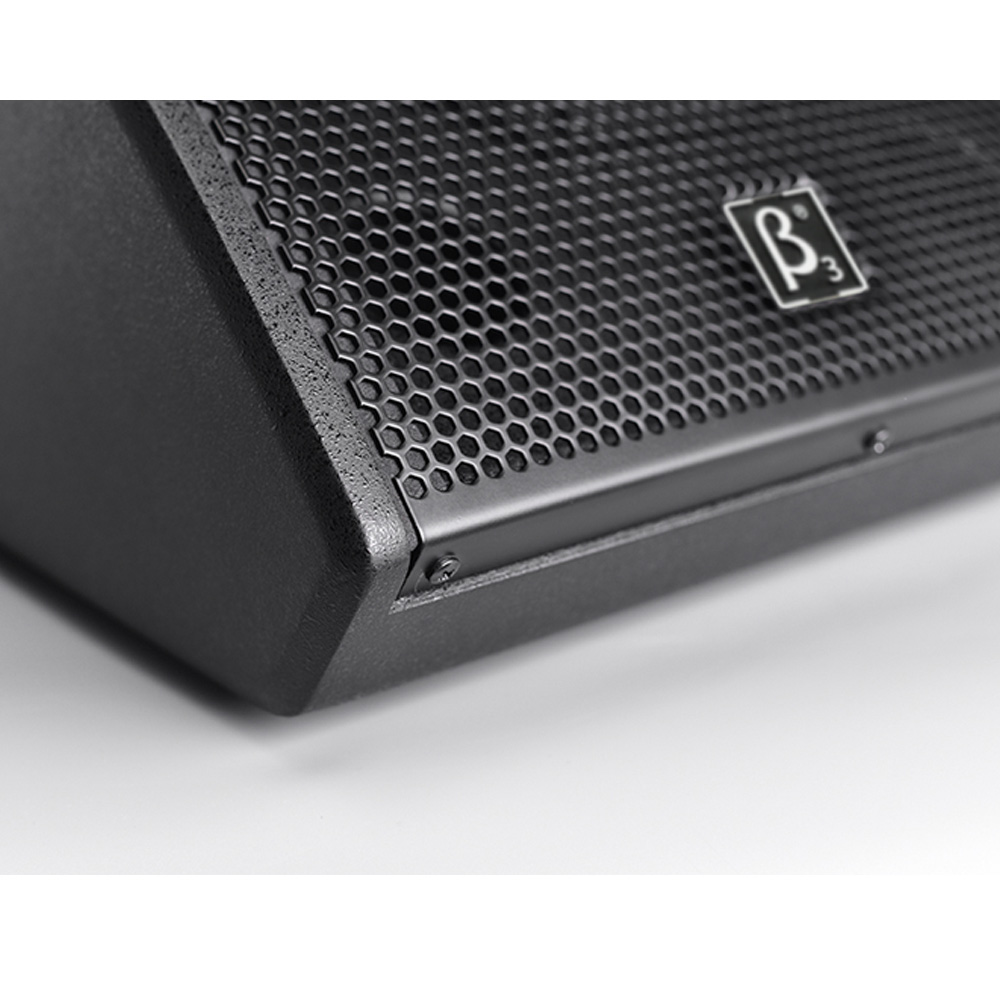

Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
385 x 406 x 317mm / (15.2 x 16 x 12.5in)
Package Dimensions (W x D x H):
495 x 395 x 485mm / (19.5 x 15.6 x 19.1in)
Weight
Net Weight:
13.5 kg / 29.8 lb
Gross Weight:
15.5 kg / 34.2 lb
