Features
- High output SPL and sensitivity
- 1 x 15” high power transducer with 50mm voice coil
- 1 x 1.3” diaphragm compression coaxial driver
- 90º x 40º controlled coverage pattern
- Rotatable Horn
- Built-in power amplifier module
- Aux and Master volume control
- Bass and Treble control
- Stereo 6.35mm unbalanced input and output connectors
- 1 x 6.35mm unbalanced Aux input
- Switchable between Mic and Line input
- 1 x NL4 output
- Injection molded
- Cabinet design for FOH and Monitor use
- Suitable for use as a main system with or without sub speaker augmentation
- Portable system (stand), or permanent installation (wall, ceiling, under balcony)
- Vent designed to reduce port noise
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-15kHz
Max SPL @ 1m:
120dB/126dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
1 x 1.3" HF
Woofer:
1 x 15" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
3 x 6.35 unbalanced Inputs + 2 x 6.35 unbalanced Output + 1 x NL4 output
Processor section
Crossover frequencies:
3kHz
Power section
Total Power:
400W(RMS); 800W(MUSIC); 1600W(PEAK);
Nominal Impedance (Ohm):
8Ω
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Color:
Black
Size

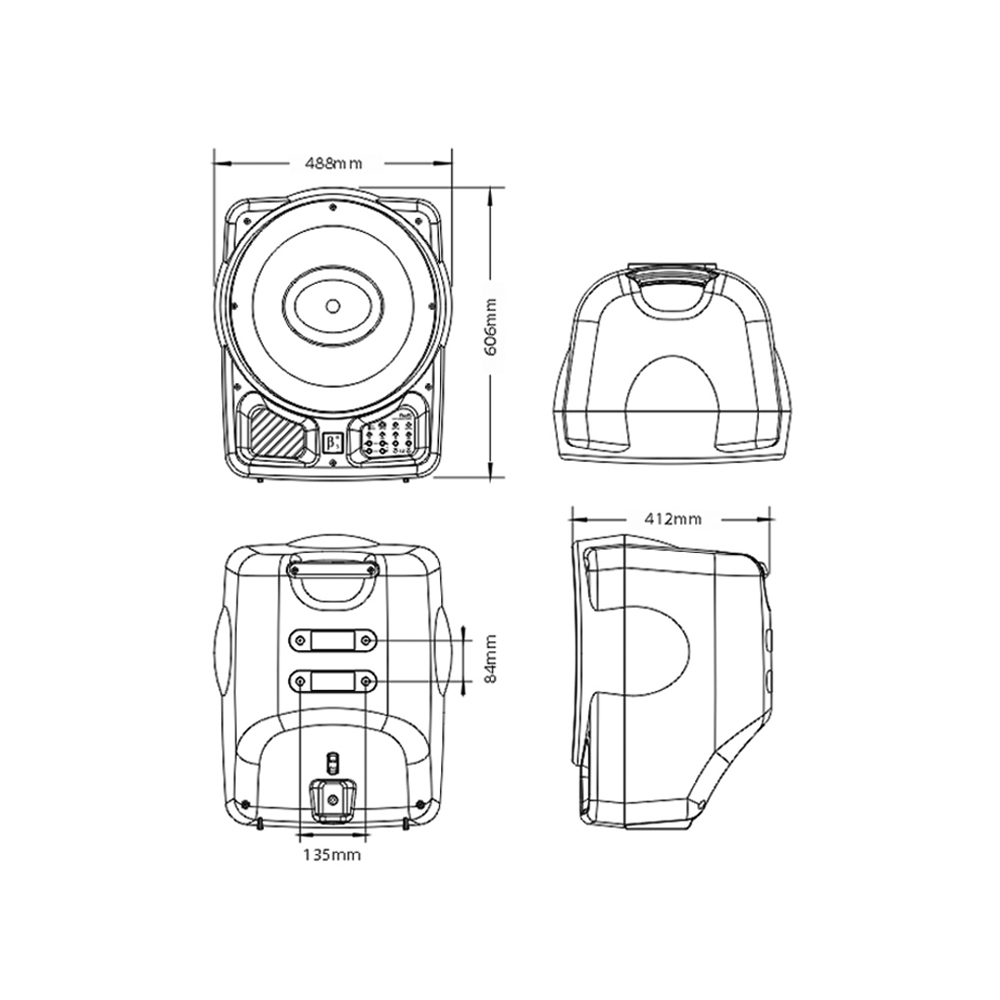

Dimension (W x D x H):
488 x 412 x 606mm / (19.2 x 16.2 x 23.9in)
Package Dimensions (W x D x H):
538 x 468 x 672mm / (21.2 x 18.4 x 26.5in)
Weight
Net Weight:
20.5 kg / 45.2 lb
Gross Weight:
23.5 kg / 51.8 lb
