Features
- High output SPL and sensitivity
- 1 x 15” high power transducer with 50mm voice coil
- 1 x 1.7” diaphragm compression driver
- Rotatable Horn: 50º-100º x 55º controlled coverage pattern
- Heavy duty protective grill
- Injection molded
- 2 x NL4 connector
- Cabinet design for FOH and Monitor use
- Suitable for use as a main system with or without sub speaker augmentation

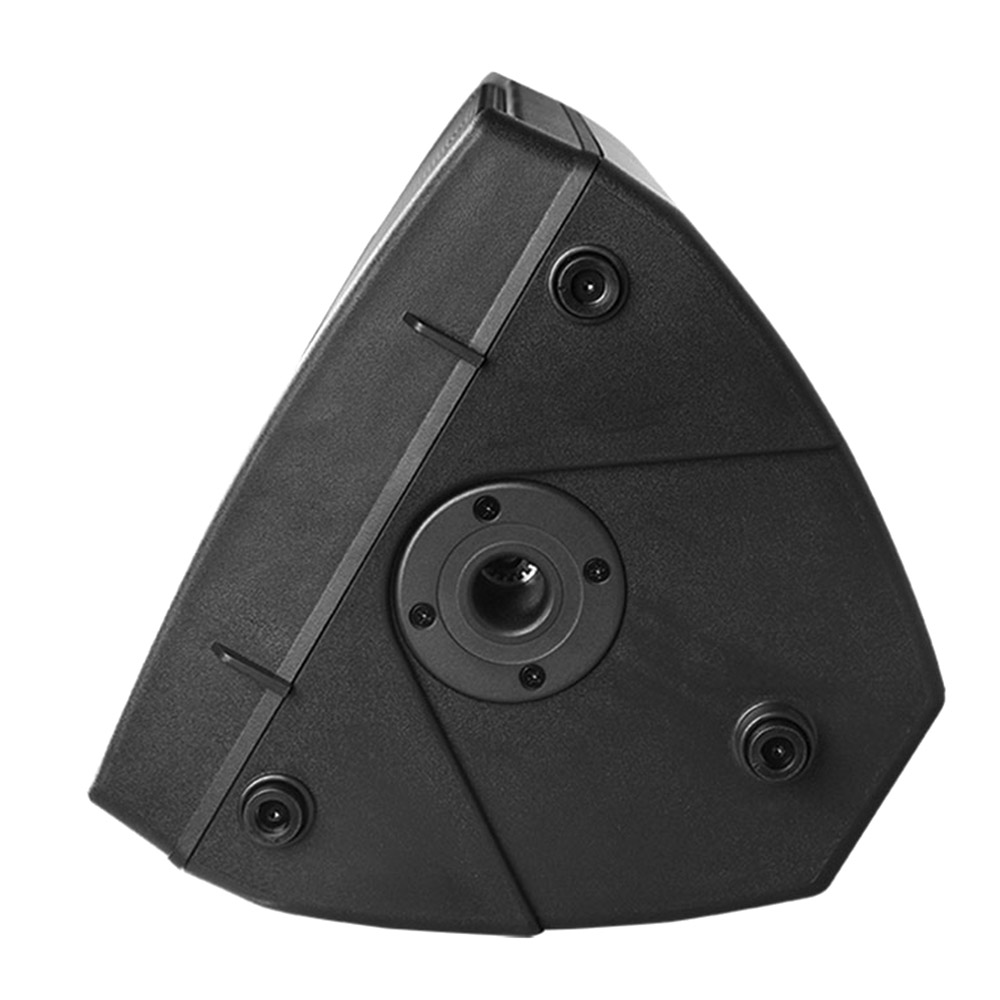

- Portable system (stand), or permanent installation (wall, ceiling)
- Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction

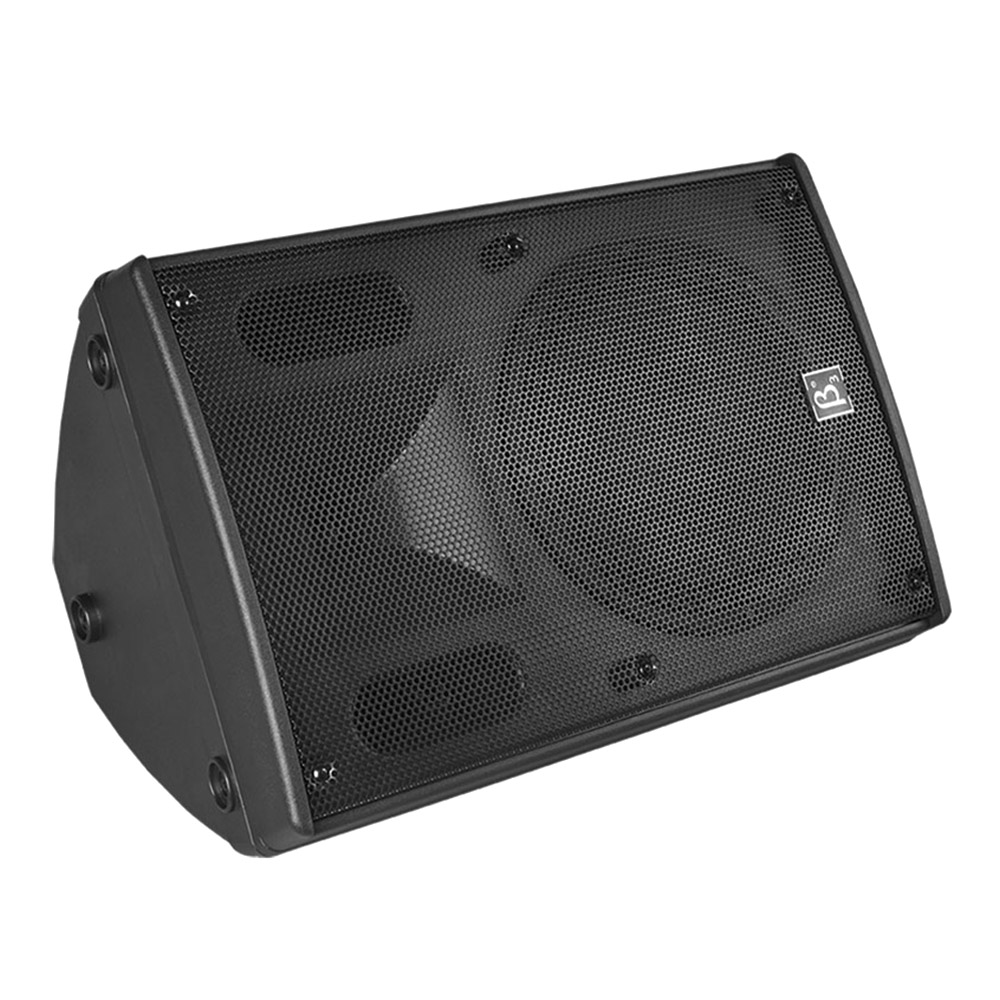

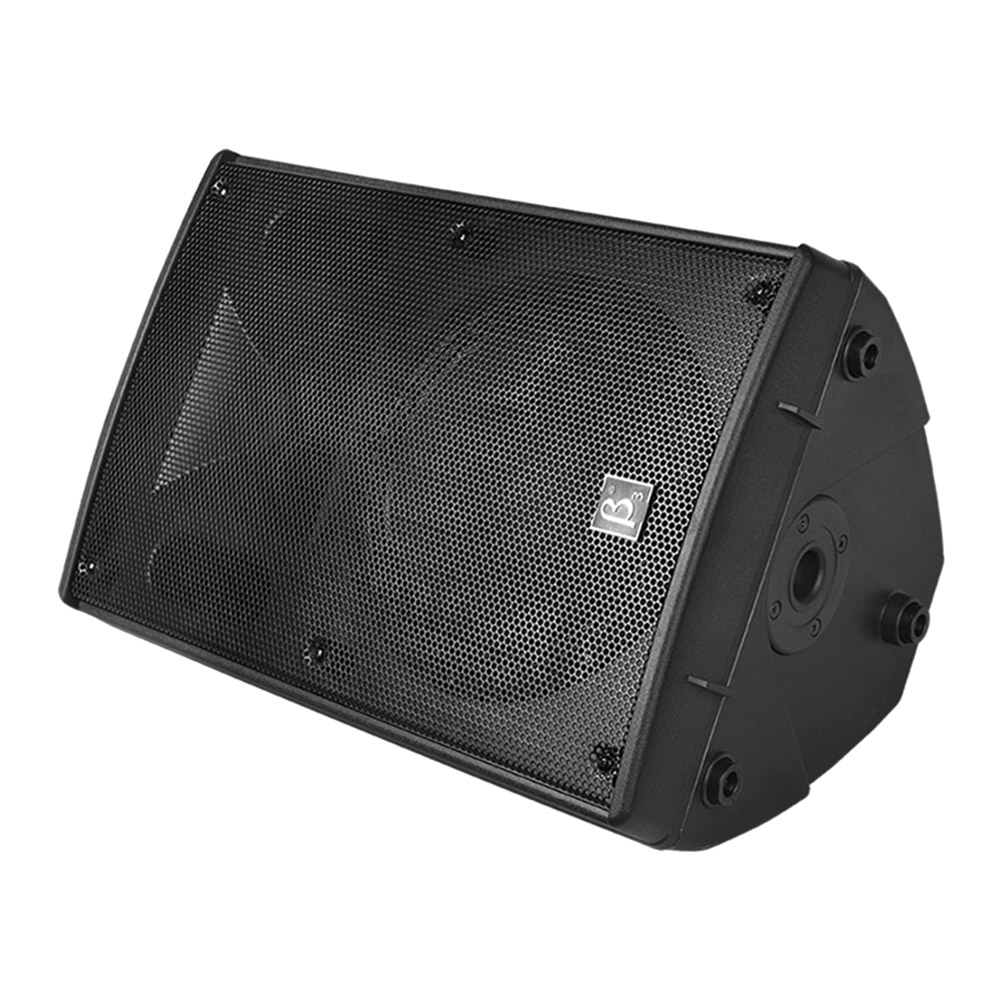

- Monitor kit - optional
Specifications
Acoustical specifications
Frequency Response(-3db):
50Hz-18kHz
Max SPL @ 1m:
121dB/127dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 15" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
97dB
Processor section
Crossover frequencies:
2kHz
Power section
Total Power:
300W(RMS); 600W(MUSIC); 1200W(PEAK);
Nominal Impedance (Ohm):
8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
488 x 460 x 700mm / (19.2 x 18.1 x 27.6in)
Package Dimensions (W x D x H):
545 x 515 x 800mm / (21.5 x 20.3 x 31.5in)
Weight
Net Weight:
24.5 kg / 54 lb
Gross Weight:
27 kg / 59.5 lb
