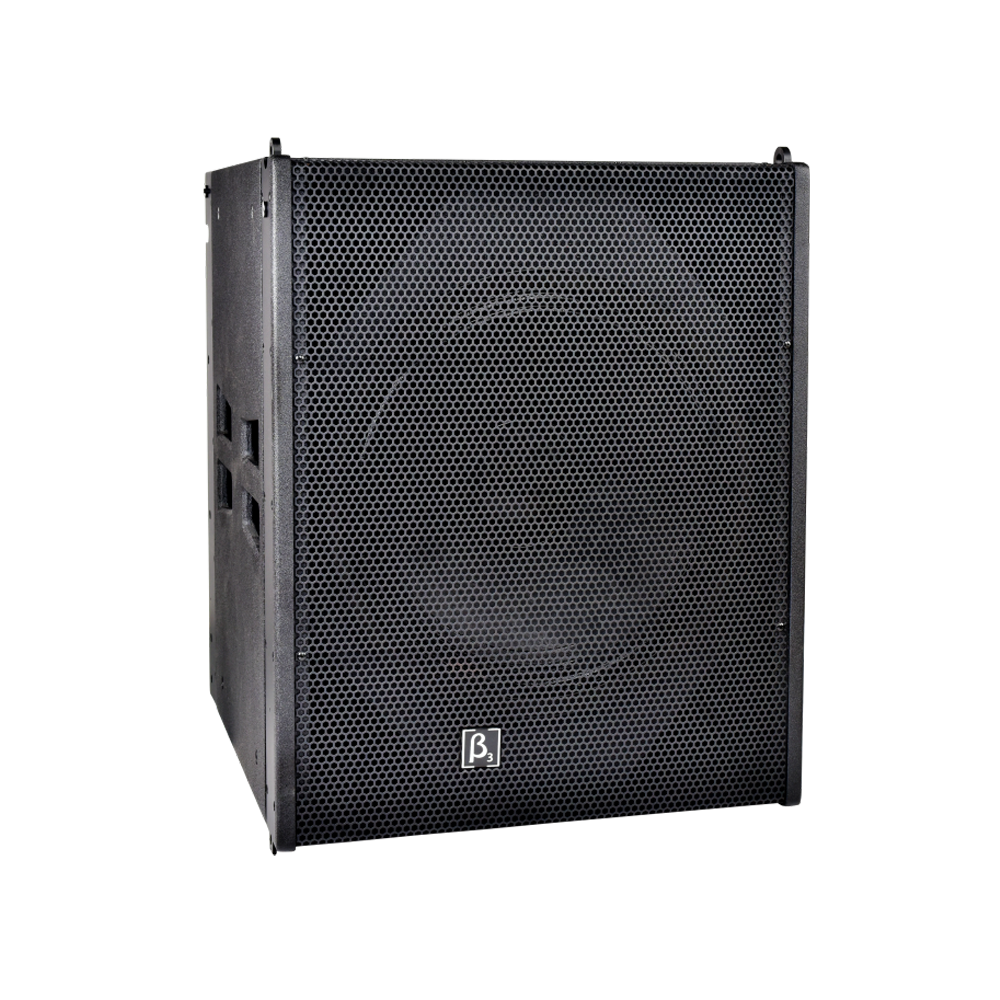

MS18Ba 18" Line Array Low Frequency Active Loudspeaker

MS18Ba

18" Line Array Low Frequency Active Loudspeaker

MS18Ba speaker is an active low frequency speaker in the MS series speaker with a new shape structure and a new surface painting process. MS18Ba uses domestic single 18-inch woofer, bass direct radiation design, subwoofer professional speaker. The surface of the speaker's surface mesh adopts the powder spraying process, so that the surface mesh not only has high strength, but also has good resistance to salt spray. Continuous use for 5 years without rust. The inside of the iron mesh is made of cotton, which can prevent the direct entry of external rainwater, and can play a role in preventing rainwater. MS18Ba speakers and MS series full-range speakers are mainly used in theaters, multi-function halls, large lecture halls, mobile performances and other places.

Features

◇ A 18-inch woofer

◇ The surface treatment of the iron mesh adopts the powder spraying process, which can be used for up to 5 years without rusting without damage.

◇ Waterproof filter cotton is added inside the iron mesh to prevent external rainwater from entering the surface of the unit.

◇ The paint and advanced spraying technology used on the surface of the box make the surface damage resistance three times higher than that of ordinary technology and paint.

Specifications

Acoustical specifications
Frequency Response(-3db):
40Hz-100Hz
Max SPL @ 1m:
123dB/129dB(PEAK)
Transducers
Woofer:
1 x 18" LF
Input/Output section
Input Connectors:
2 x XLR
Power section
Total Power:
450W(RMS); 900W(MUSIC); 1800W(PEAK);
Nominal Impedance (Ohm):
Cooling:
Cooling fan
Power consumption(static):
25W
Power consumption(rated):
200W
Voltage range:
AC 220V-230V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
18mm Plywood
Handles:
4 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black
Size
Dimension (W x D x H):
556 x 650 x 716mm / (21.9 x 25.6 x 28.2in)
Package Dimensions (W x D x H):
765 x 670 x 815mm / (30.1 x 26.4 x 32.1in)
Weight
Net Weight:
56.5 kg / 124.6 lb
Gross Weight:
61 kg / 134.5 lb

MS18Ba Application

    MS18Ba Installation

      MS18Ba Parts

        MS18Ba Cases

          MS18Ba Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              MS18Baβ3 MS18Ba Datasheet 1.0MS18Ba  200KB 2024-12-26 15:25:59
