The Beta Three® R series is a series of compact line array loudspeaker system perfectly suited for various installed sound applications, including Houses of Worship, theme parks, multifunctional halls, auditoriums, schools, and many other venues. The R series is a complete sound reinforcement system comprises of 4 full-range speakers and a subwoofer designed with ease to set up and operate.

R6/R12a Compact Active Line Array System
R6/R12a Compact Active Line Array System

R6/R12a

Compact Active Line Array System

The Compact Line Array loudspeaker system are used in applications including sound reinforcement for Houses of Worship, Events, Theme Parks, Multifunctional Auditoriums, Schools, and Transit Terminals etc. The R Series Compact Line Array systems delivers extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.


Features

  • The system comprises of 4 x R6 mid/high boxes consisting of 1 x Ribbon tweeter, 1 x 6.5” MF and 2 x 6.5” LF drivers per full range speaker, and 1 x R12 Subwoofer consisting of 2 x 12” LF drivers
  • Stable 3000W amplifier module
  • 2 x NL4 input and output connectors on each cabinet
  • For optimum performance use with a Beta Three® a digital speaker management processor
  • Integrated rigging and speaker cabling included for the system
  • Rigging allows adjustment of R6 in 1° increments
  • Designed for high speech intelligibility and natural sounding music
  • Suitable for use as a main system with or without sub speaker augmentation
  • Permanent installation
  • Powder coated grill
  • Durable Polyurethane textured base paint
  • Available in either black or white

Specifications

Acoustical specifications
Frequency Response(-3db):
40Hz-20kHz
Max SPL @ 1m:
124dB/130dB(PEAK)
Dispersion (H x V):
90° x 10°
Transducers
Transducer Driver:
R6: 1 x Ribbon HF + 1 x 6.5" MF + 2 x 6.5" LF; R12a: 2 x 12" LF
Input/Output section
Input Connectors:
R6: NL4; R12a:XLR for input, XLR for output
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK);
Nominal Impedance (Ohm):
R6a:16 Ω,R12a:4 Ω
Cooling:
Air cooling
Power consumption(static):
38W
Power consumption(rated):
500W
Voltage range:
AC 220V-240V~, 50/60Hz
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Wedge Cabinet,Plywood
Hardware:
Special rigging brackets and connection accessories
Handles:
2 x Wooden handles
Grille:
Cabinet coated by Polyurethane paint; grille is powder coated
Color:
Black

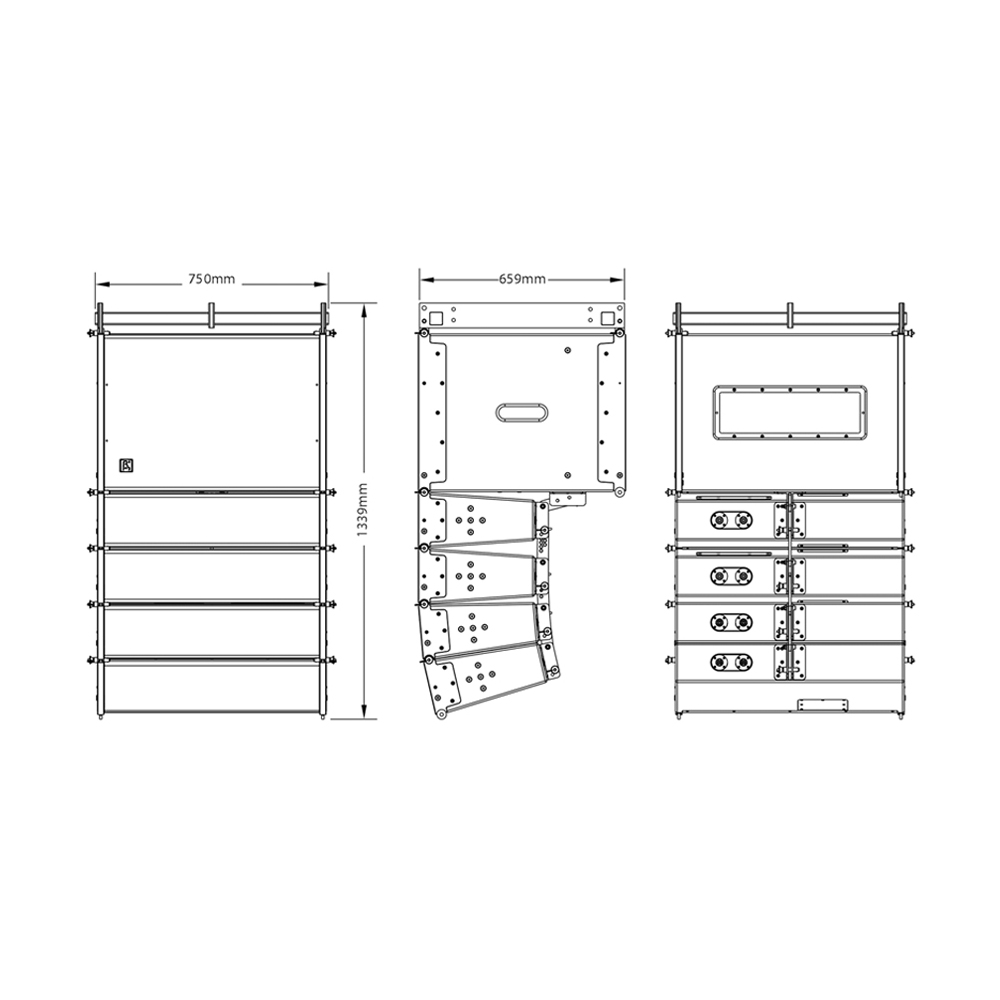

Size
Dimension (W x D x H):
R6: 419 x 210 x 736; R12a: 736 x 667 x 542; Flying frame: 659 x 112 x 750
Package Dimensions (W x D x H):
R6: 505 x 310 x 876; R12a: 815 x 667 x 542; FF: 779 x 225 x 870
Weight
Net Weight:
82.5 kg / 181.9 lb
Gross Weight:
94 kg / 207.2 lb
